MEASUREMENTS: Audioquest Dragonfly Black 1.5 - PART 1 (General)

Four USB mini-DAC's (back to front): Light Harmonic Geek Out V2, Audioquest Dragonfly Black, SMSL iDEA, AudioEngine D3.

As I showed a couple weeks ago, I have in my possession one of the Audioquest Dragonfly Black DACs for testing. I'm actually borrowing it from a friend so it's not going to be in my possession for long... Long enough for me to listen and run some objective testing to see what the "deal" is.

I think it's useful to show these test results on the Dragonfly because AudioQuest clearly has a healthy advertising budget and promotes it quite heavily on audiophile sites with ads in magazines as well; as such it's a bit of a "standard" even though a number of other alternatives exist. For example, a few weeks back, I showed the measurements for the SMSL iDEA which I thought performed objectively amazingly well for such a small device although I had some issues with seamless connectivity to Linux / Android. As you can see in the image above, I have tested a few others of these kinds of  DACs already including the AudioEngine D3 measured in 2014, Light Harmonic Geek Out V2 in 2015, and also the previous revision Dragonfly v1.2 in 2014 which I don't have on hand any more (it was given as a gift to a friend).

I. Intro

Like the Dragonfly v1.2 before, the new Dragonfly Black 1.5 (and I would assume the Dragonfly Red) feels like a well made product. There's a rubberized-metal solid feel to the device. There's some heft to it, unlike the more plasticky feel of the Geek Out V2's 3D printed case. The AudioEngine feels solid as well with its aluminum construction. The SMSL iDEA is comparatively lighter weight which is consistent with it's tiny frame.

No buttons or any hardware control on the device. There is of course the large dragonfly logo on top which changes color to show the sample rate: red = standby, green = 44kHz, blue = 48kHz, amber = 88kHz, magenta = 96kHz, and purple (darker magenta) = MQA rendering as of firmware 1.06.

Here's a handy comparison table that shows the difference between the Dragonfly models. As you can see, the new Black and Red models use a Microchip PIC32MX microcontroller. This is a low power device paired with the ES9010(K2M?) DAC in the Black, and the ES9016 DAC in the Red; both of which are of course part of the ESS Technology Sabre family with the ES9016 having better dynamic range and distortion measurements of the two. As a headphone amp, the Black is capable of lower output defined as 1.2V direct-coupled, while the Red can provide up to 2.1V. I did not see any specifications around total power for the headphone amp.

It has been said that in order to maintain simplicity, the Dragonfly devices are asynchronous USB Audio Class 1 interfaces only, capable of a maximum 24/96 PCM audio. I did not have any compatibility issues at all running this device on Windows 10, Mac OS X, Android or Linux. Totally plug-and-play.

The measurements I'm going to do is essentially the same as what I did for the SMSL iDEA DAC a few weeks back. Here's the set-up:

Device (eg. Surface Pro 3 laptop) --> Audioquest Dragonfly Black --> generic 6' phono-to-RCA cable --> Focusrite Forte --> 6' USB cable --> Win 10 measurement computer

Unless stated otherwise, the Dragonfly was connected to my Microsoft Surface Pro 3 (i5) Windows 10 Creators Update. Native WASAPI driver used.

I started measurements with firmware 1.03 and later on upgraded to the 1.06 version with MQA "rendering" capability. For today's "general" tests, there were no differences between the two versions. I will talk about MQA next time.

II. Digital Oscilloscope, Digital Filter, Impulse Response

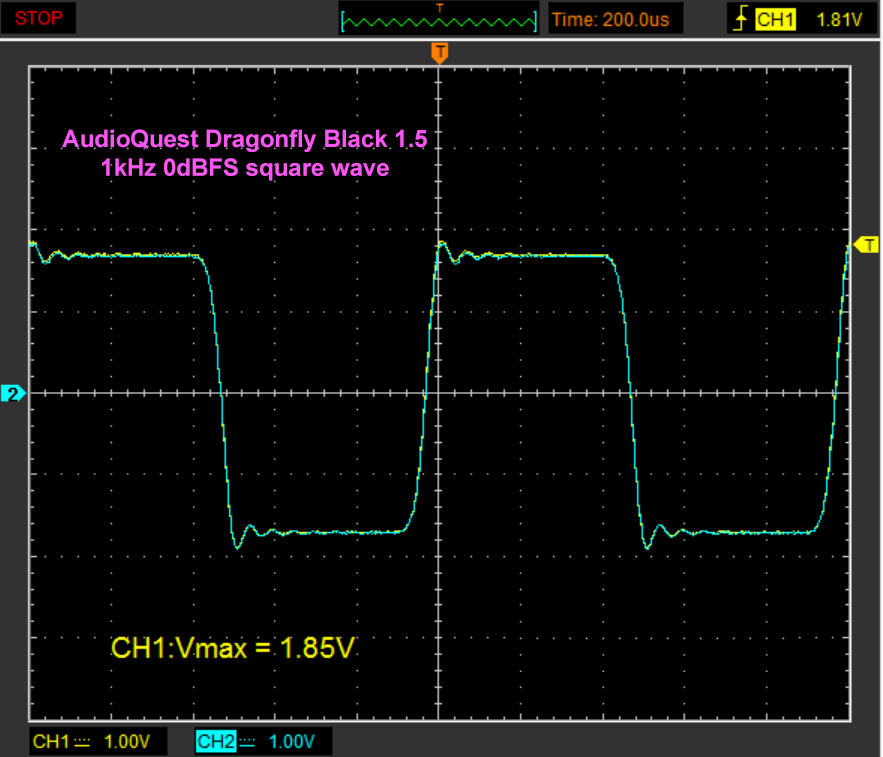

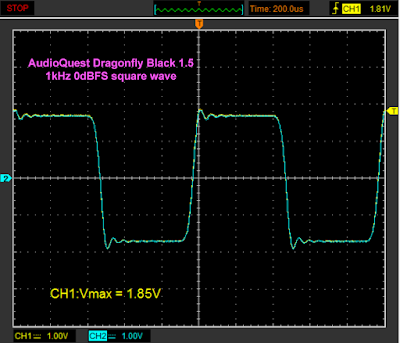

Let's start with the microscopic evaluations... Here's the 1kHz 0dBFS 16/44 square wave as per the digital oscilloscope:

That looks good - Vmax of 1.85V or Vrms of 1.3V for this sample. Channel balance is excellent and much better than the Dragonfly v1.2. By the appearance of the post-ringing, the digital antialiasing filter is of the minimum phase variety.

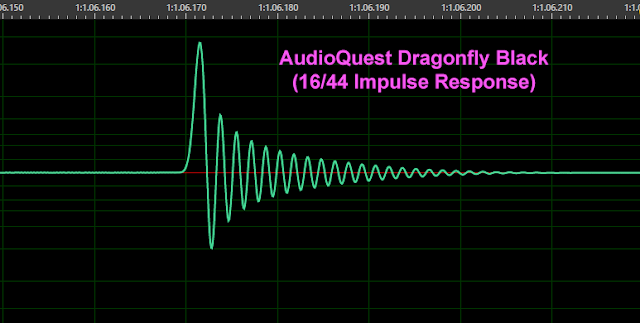

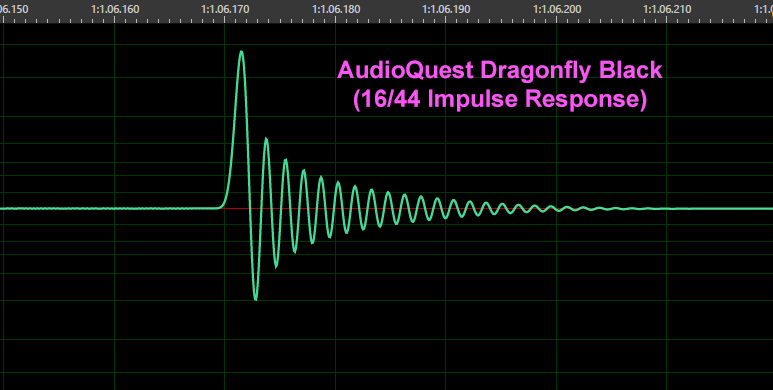

Standard looking minimum phase impulse morphology. Absolute polarity maintained.

Based on the above, we would expect a reasonably "sharp" filter around Nyquist with likely good antialiasing ability...

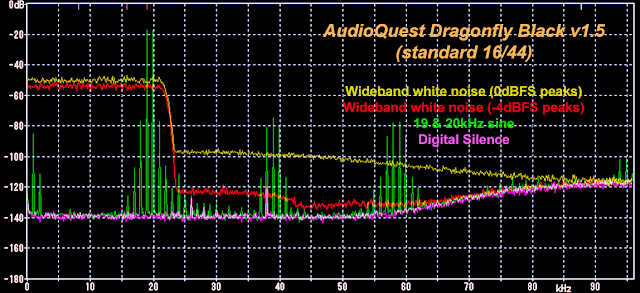

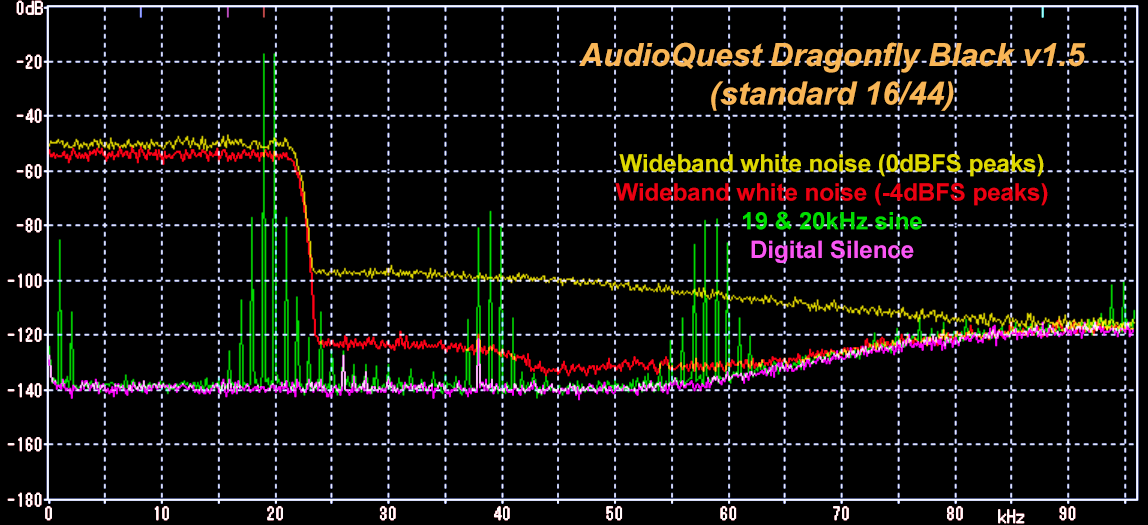

There it is, the "Digital Filter Composite" based on the "Reis Test". Some 0dBFS overload as commonly seen in most DACs but I see the -4dBFS wideband noise curve isn't quite perfect either. In any event, good suppression of higher order harmonics; about -60dB between 20kHz to 40kHz.

Using a 20-ohm resistor at the output of the headphone jack, using a 1kHz sine wave, the calculated output impedance was 0.61-ohms (the Stereophile review says "<1 ohm"). The DAC is advertised as direct-coupled and this is consistent with my findings.

AudioQuest touts the USB power utilization as being very low with the new Dragonflies. Indeed, the Black sips very little power from the USB bus - only about 30mA @ 5V idle and up to 90mA with a 16-ohm JVC HA-FXC51B IEM at full volume while playing music! Remember in comparison the SMSL iDEA from a few weeks back measures at 110mA to 210mA, and the AudioEngine D3 160mA to 280mA. Significantly more with the Light Harmonic Geek Out V2.

III. RightMark Tests

16/44.1:

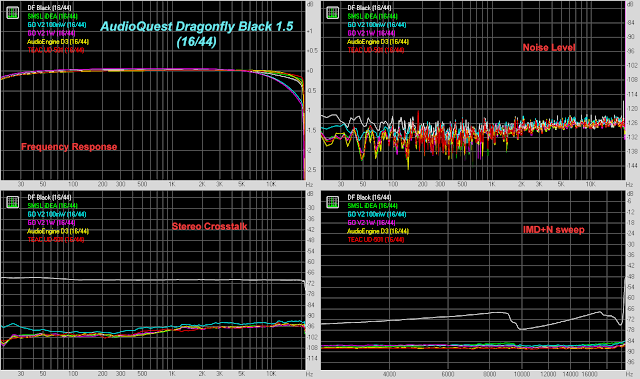

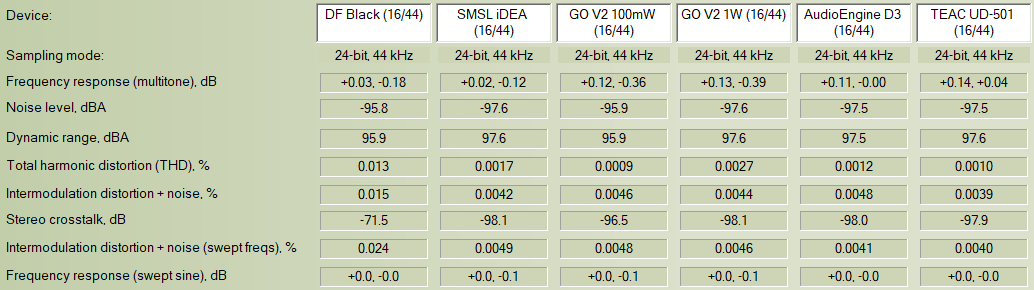

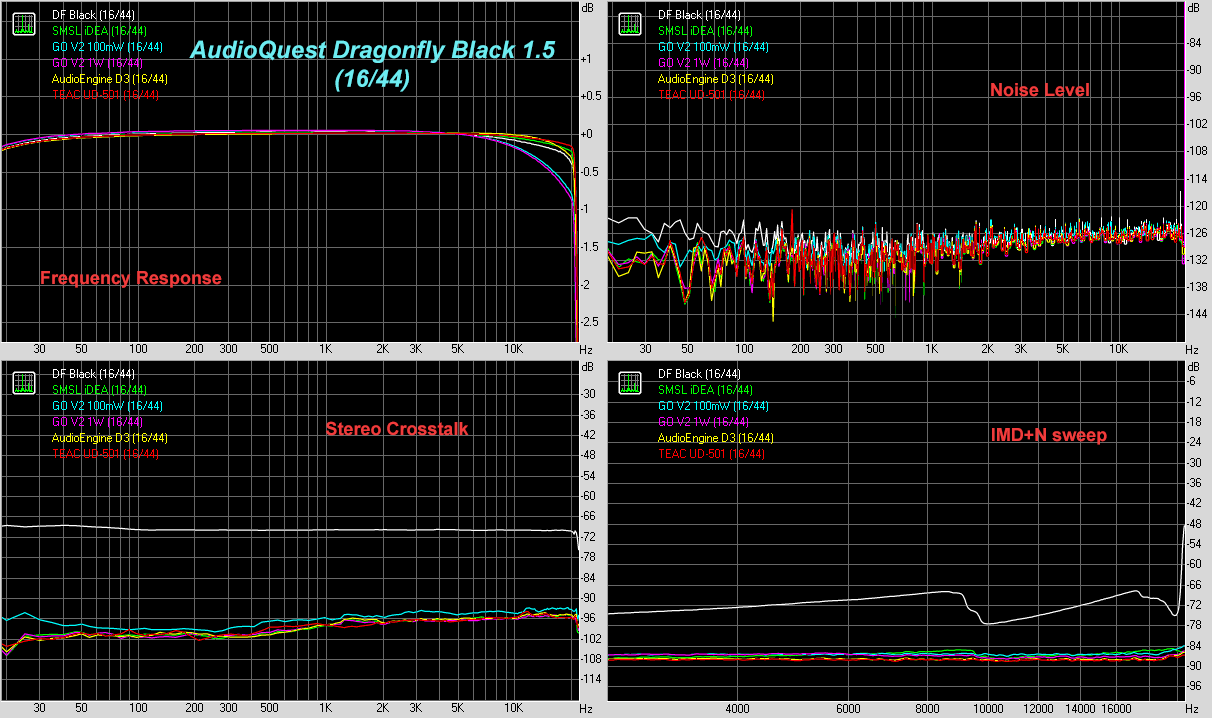

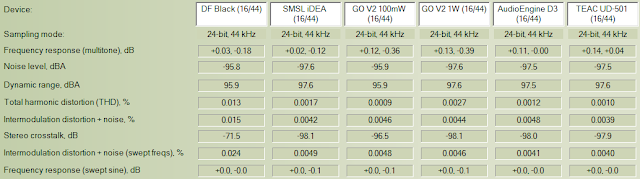

Starting at "standard" CD resolution, here's the summary chart...

We see in the lineup our 4 mini USB DACs - left to right are the Dragonfly Black, SMSL iDEA, Geek Out V2 (100mW into 16-ohm mode), Geek Out V2 (1000mW into 16-ohms), AudioEngine D3, and finally the TEAC UD-501 desktop DAC for comparison. If you're keeping track, the AudioEngine D3 is based on the AKM AK4396 DAC, and TEAC UD-501 uses dual-mono TI/BB PCM1795 while the others all use some variety of ESS Sabre DACs.

Generally, I would say that 16/44 is no big deal for modern hi-res DACs. But there's something fishy about the Dragonfly's distortion measurements. THD and IMD looks higher than the other devices. And crosstalk is found to be significantly lower as well compared to the others despite using the same set-up and cables.

This Dragonfly Black certainly "stands out" compared to the others in the stereo crosstalk and IMD+N graphs particularly! Interestingly, the old Dragonfly v1.2 also showed these similar irregularities back in 2014.

24/96:
Moving along then, let's have a look at high resolution performance.

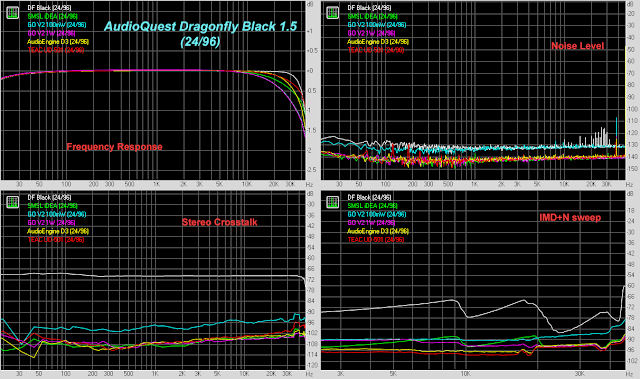

Hmmmmmmm (extra long)... Clearly, the Dragonfly Black is not objectively impressive. Again, we're seeing relatively weak performance compared to the others in the field. Noise level is about on par to the Geek Out V2 in low-power output mode (100mW into 16-ohms). Like with the 16/44 results, we're seeing an unusually high amount of stereo crosstalk and comparatively poor distortion results. These anomalies can be easily appreciated in the graphs:

The Dragonfly's resolution is around 16.5-bits, slightly better than CD resolution. Similarly, Stereophile's measurements described the Black as "the less expensive Dragonfly offers 17 bits' worth of resolution" which I believe is generous as a resolution estimate.

IV. Jitter

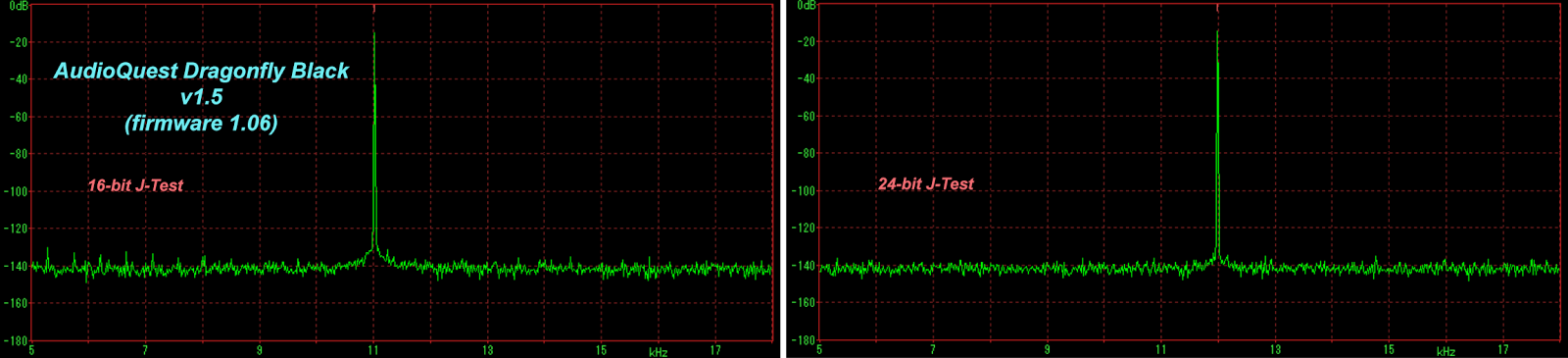

The Dunn J-Test looks good with no unusual sidebands. This is as expected from a modern asynchronous USB device. Notice that because of the Dragonfly's relatively low resolution just clearing the 16-bit noise level, we can't see the 16-bit modulation signal poking through the noise floor as well. Look at the recent SMSL iDEA's 16-bit J-Test for comparison.

V. Subjective Evaluation

I have been listening to this device off and on over the last 2 weeks since I received it on loan. To make sure that I wasn't influenced by the testing, I actually did not construct the graphs or look deeply at the numbers coming out of the testing until I started to write this article with comparisons.

From the start, I thought the device sounded good. I was pleased that it didn't give me any trouble with my Android phone or when plugged into a Linux machine. As expected, Windows and Mac compatibility was trouble free. It played back without trouble on an old 2010 iPad 1 using the Apple Camera Connect Kit :-).

I have a few "standard" tracks that I know well. For example, Akon's album Konvicted (2006, explicit content warning) has prodigious bass that blasted through my Sennheiser HD800 well using the DF Black. The HD800's are high-impedance (300-ohm) headphones and the lower voltage from the DF Black didn't allow them to reach the same volume as the comparably priced SMSL iDEA.

A well recorded jazz standards album like Ben Webster's Gentle Ben (1973, 2012 Analogue Productions DSD64 converted to 16/48, DR16) sounded great. Very good detail, nice clarity, natural tonality. Webster's sax was reproduced with fantastic nuance. Compared to the old Dragonfly 1.2, the better channel balance was noticeably improved (this was a concern I had with the old Dragonfly easily demonstrated in the measurements).

Often, good quality gear shows us the imperfections in recordings. Recently, my kids wanted to have a listen to the recent Beauty and the Beast soundtrack which sounded fine with the little CD player (most of the music is of course a re-recording of the 1991 animated classic with a few new songs). However, with the CD's ripped, having a listen on the computer with the Dragonfly, one could easily hear the Auto-Tune "fakeness" in Emma Watson's vocals... Just have a listen to track 5 "Belle" and notice the weird tonal shifts and "plastic" sheen of the vocals from our heroine even in the first few lines! After all, the character's vocal ability should have reflected the natural beauty of "Belle". Instead, the Auto-Tuning made the voice sound like a modern "Top 40" pop diva - more of Katy Perry or Lady Gaga and less of the sweet inventor's daughter from the small provincial town :-(. The honesty of accurate reproduction should make these blemishes evident whether we like it or not.

By the way, there is that term "uncanny valley" to describe the eeriness of CGI at times, especially of facial movements, that don't quite capture reality. I got that sense watching Star Wars: Rogue One with the computer reconstruction of Peter Cushing as Grand Moff Takin or the young Princess Leia. Likewise, the human voice is said to be the most difficult to reproduce perfectly. These days we're used to Auto-Tune pop, but when it shows up in what should sound like the natural vocals of musical theatre, I find that it comes across disturbingly fake.

VI. Conclusions

Compared to the previous generation Dragonfly V1.2, the Dragonfly Black 1.5 is an improvement. Channel balance is clearly better and the current draw of <100mW @ 5V even with music at full volume into ~16-ohm IEMs is very impressive and means that this device can be used with many portable devices including phones and tablets. I was for example able to get it working with my old Google Nexus 7 tablet which didn't have enough juice to stably power the SMSL iDEA. This is also great for battery life.

Where the Dragonfly Black stumbles is in the objective measurements of sound quality. Noise level could clearly be better and distortion results seem strangely high compared to the others (similar to what I saw with the Dragonfly 1.2 in 2014). While it can handle >16-bits resolution, it's at best a sub-17-bit device which is surpassed by the SMSL iDEA, AudioEngine D3, and Geek Out V2 (in higher power mode). I suppose this is why AudioQuest offers the more expensive Dragonfly Red which provides higher resolution and more headphone amplification presumably at the expense of power draw from the USB port.

From a consumer perspective, I think the DF Black targets directly at the owners of laptops with poor built-in DACs and people like iPhone 7 users who want analogue output (so long as they don't mind adding a Lightning to USB cable as well). Remember that relatively recent cell phones like even the iPhone 6 and Samsung Note 5 already have quite good quality outputs already although this DAC can provide more power and has lower output impedance for better sounding low-impedance headphones like IEM's though not necessarily better resolution.

I can certainly understand AudioQuest's desire to keep things simple and compatible by sticking with USB Audio Class 1, thus the maximum of 24/96 input. Compared to most DACs today, that also means not having access to the higher sample rates and DSD. To be honest, I don't really have any albums worthy of 24/192 and DSD isn't exactly ubiquitous so I don't think this is a problem especially for day-to-day portable use.

Ahhhh... But the AudioQuest Dragonfly Black can "render" MQA you say! That surely must be a significant feature and worthy of consideration, right?

Indeed, it is worthy of consideration... And objective evaluation! That, my friends will be the topic for PART 2 next week :-).

--------------------------------
