RETRO-MEASURE: 2001 Sony SCD-CE775 5-disc SACD/CD Player (CD test)

Sony SCD-CE775 sitting below the Panasonic Blu-Ray player... A relatively large box - 17" wide, 15" deep, 5" tall.
Every once awhile, I like putting up measurements and thoughts on gear that I either own or borrowed of an older "vintage". I think it's good to have measurements of these older equipment for the sake of perspective! These days, it seems like the moment one buys a new smartphone, wait a few days and we see an announcement for the next generation of product... It was not always like this of course :-).

For this post, let's have a look at the performance of one of my favourite budget audio players that I have owned for the last 16 years - the Sony SCD-CE775, one of the earlier consumer-level SACD players released back when the SACD was viewed as the new-kid-on-the-block of digital formats. This specific model was released in 2001, at around the same time as multi-channel SACDs became available for sale - there was a copy of Kind Of Blue multichannel SACD in the box. I picked this unit up new in the summer of 2002 I believe and it has been a constant on my audio rack since then. My thought at the time was that this would be my back-up SACD/CD player, but as history would have it, with the transition to computer audio, I sold off my Sony SCD-555ES at some point back in 2004 and just stayed with this multi-changer and my old DVD player for spinning disks.

Since seriously ripping all my audio into the computer mostly between 2004-2007, I have rarely needed to play any more CDs in the main sound room. In fact, although this machine has been sitting on my audio rack since moving to my current home in 2013, it has been dormant until running the tests here!

Unfortunately, I have never seen measurements for this device. I know that this player was quite well regarded back in the day. A few reviews - herehere and here - are still available online dating from that time period at the turn of the millennium.

After 16 years, it still works very well. Quite a smooth 5-disk changer mechanism (much better than previous JVC and terrible Harman-Kardon FL8380 HDCD multi-disk changers I've owned). When used regularly back in the day, I never had any issues with stuck disks or read errors (unless the SACD/CD truly had visible defects on the read surface). As you can see above, the front display is capable of showing CD-Text. I also like the "EX-CHANGE" button that allowed the changing of disks while it's playing the current disk. The standard plastic remote works fine although these days, I just program everything into my Harmony universal remote.

It has a relatively large push-button switch to turn it on. The only thing I wished this device had was an on/off remote button to put it to sleep. Otherwise, I've always thought that this was a great device that sounds very good... Price back in the day? MSRP US$400 but I'm pretty sure I got it for around CAD$350 at the old Future Shop here in Vancouver (before they got bought out by BestBuy).

Measurement set-up is similar to what I've done over the years. The only difference is of course, this being a CD player, I simply burned appropriate test tracks on to a disk to play. I used some inexpensive Memorex Cool Colors 700MB/80min CD-R I had. Burned the CD-R with my computer's LiteON iHAS124 DVD-RW drive at the slowest 16X burn speed (remember back in the day there were all kinds of concerns that high burn speeds added jitter?), verified to be 100% error free using Nero Burning ROM 2016.

Measurement chain:
Test CD into Sony SCD-CE775 - 2ch stereo output --> 6' generic shielded RCA cable --> Focusrite Forte ADC --> 6' generic USB cable --> Windows 10 laptop
Notice that I'll be measuring the 2-channel RCA outputs; there are also multichannel outputs that are used for surround SACD. As usual these days, my measurement system using the Forte ADC and laptop is run off the ultrabook's batteries which helps reduce 60Hz North American mains hum and is free of ground loops.

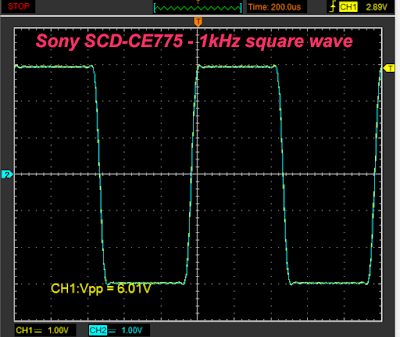

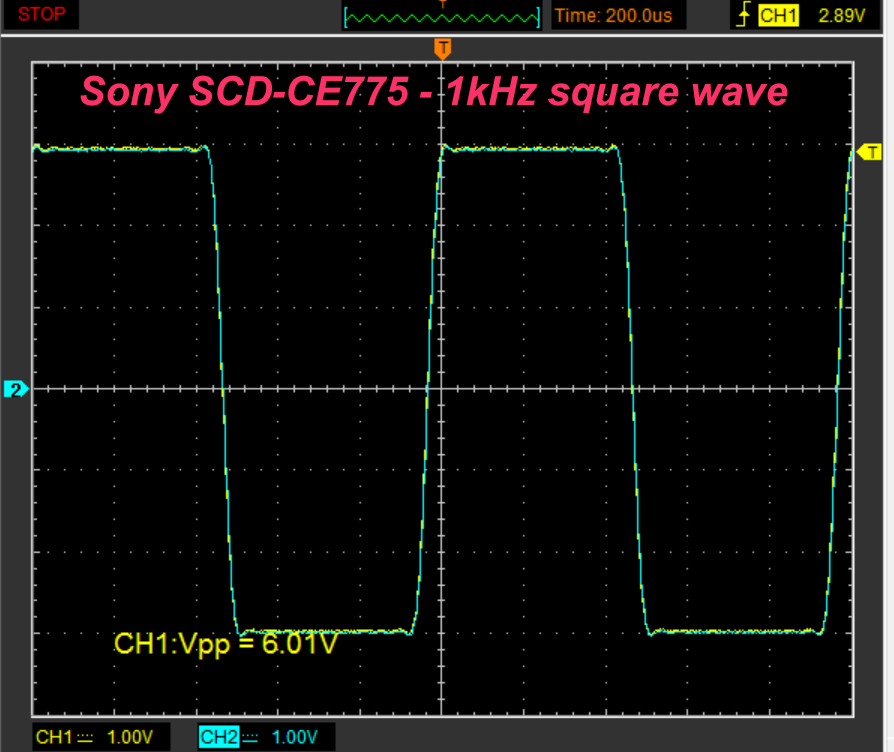

Let's start with an oscilloscope reading of a 1kHz square wave:


The Sony manual lists RCA output level of 2Vrms. Yup, indeed, this is what we see with a peak voltage of 3V. Notice how well the two channels overlay on each other. This demonstrates excellent channel balance.

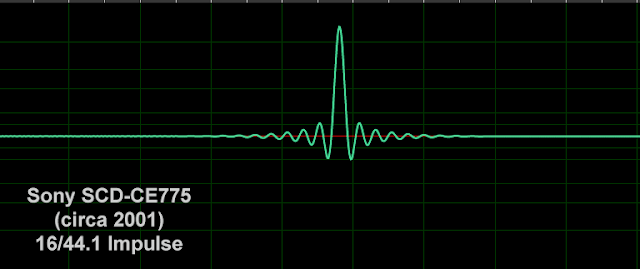

Let's have a peek at the impulse response from the RCA output:


That's nice. An orthodox linear phase sharp roll-off filter. Absolute polarity is maintained.

Here's what my "Digital Filter Composite" graph looks like (based on the Reis Test) for this machine:


That's quite good. As expected based on the impulse response, the roll off is steep, there is minimal ultrasonic leakage with the 24 and 25kHz image frequencies >50dB below the primary signals (19 & 20kHz). Also, great to see an absence of significant intersample overloading comparing the 0dBFS and -4dBFS white noise signals. This suggests a good amount of headroom when the 16-bit signal is processed by the digital filter.

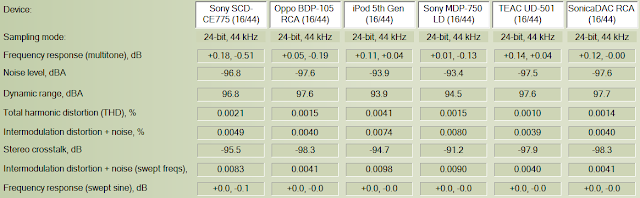

Using RightMark Audio Analyzer, I can compare the 16/44.1 result with other devices measured over the years in my collection of gear with the same general setup and RCA cable for each:


In the comparison here, we see data from Oppo BDP-105 as USB DAC (I noticed that I had forgotten to measure the CD-player performance previously), the 5th Generation iPod from 2006, Sony MDP-750 LaserDisc from 1994, my TEAC UD-501 USB DAC often used as a standard comparator, and the Oppo Sonica DAC from 2017.

Notice that overall, "standard resolution" CD (16/44.1) playback isn't all that "challenging" for decent devices. Yes, there are differences especially with the older device - the Sony MDP-750 LaserDisc and my old 5th Generation iPod can be seen to measure at a somewhat lower level than this Sony SACD/CD player objectively.

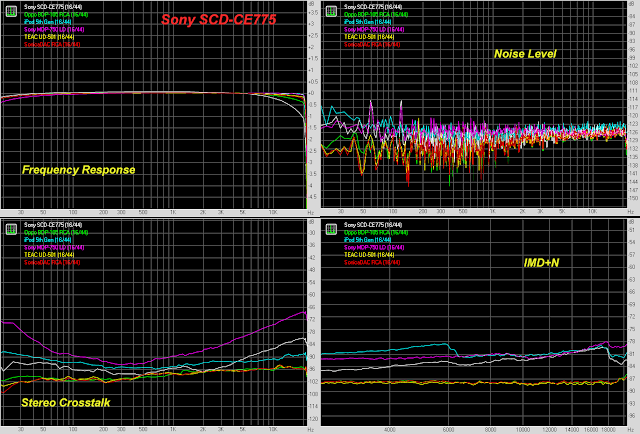

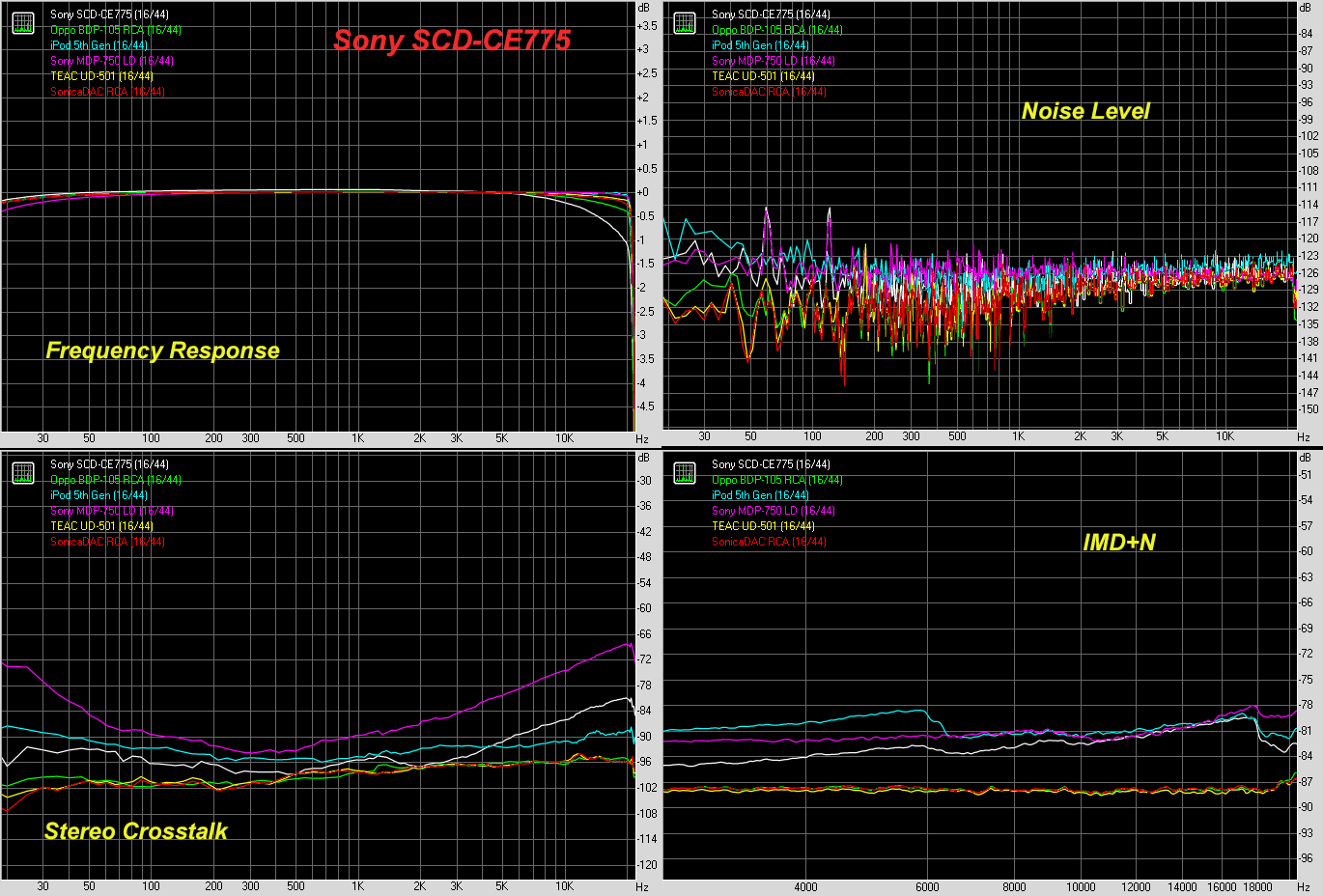

Looking deeper into the performance levels, here are some graphs for comparison:
Note that I zoomed into the vertical scale for some of these plots like for the noise level.
Of all the devices, the Sony SCD-CE775 demonstrated slightly more high frequency dip down to -1dB by 20kHz. Interesting, but I don't consider this an issue. It also was middle-of-the-pack in crosstalk and IMD+N.

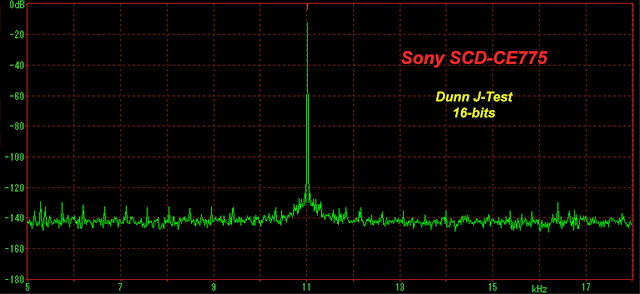

Finally, let's have a peek at the 16-bit Dunn J-Test result:


Nice, a rather good J-Test - remember, this is with an inexpensive CD-R burned at 16X! We see a small amount of low-frequency jitter at the base and no significant sidebands. From what I can tell as per this demonstration, jitter even with consumer-level CD/SACD players was not a problem for reasonable quality devices for 20 years already.

Impression:
Overall, this is a very good sounding and excellent measuring device released initially back in 2001.

I suppose historically this device represents that transition point between "standard resolution"-only CD players before the release of SACD/DVD-A (prior to 1999/2000) and the shift to hard drives and solid-state portable devices which in time evolved for many audiophiles to true high-resolution playback systems like modern USB DACs (TEAC and the two Oppos measured). Interesting that looking at the objective results we can actually see this "middle-of-the-road" performance at the turn of the century as indicative of the quality available to consumers as we entered the realm of "high resolution audio"... Have a look at the IMD+N and stereo crosstalk comparison graphs for example.

Unfortunately, I don't have any SACD test disks to measure how much resolution can be extracted from a DSD signal. Also, this Sony player was unable to play homemade burned SACD-R disks like what I did to measure the Pioneer DV-588A years back (nor have DSD file over USB read capability like the Oppo BDP-105 of course). I can however look at the noise level coming out from DSD playback to see that we indeed have a bit of extra ultrasonic noise coming out of the DSD output:


As you see on the graph, this is the first 60 seconds or so of track 1, "Speak To Me" from the 2003 hybrid SACD release of Pink Floyd's Dark Side Of The Moon recorded back at 24/192 using my ADC. The extra relative noise is a well known phenomenon with DSD64. With the Sony SCD-CE775, we see that it peaks around 60-70kHz.

Well, what can I say... I'm glad that I kept this Sony disk player. I honestly have doubts if I'll ever buy another disk spinning device purely for audio playback in the sound room. While I can show some differences in measured 16/44.1 performance between this CD player and various DACs, high quality devices that reproduce the signal accurately sound way more similar than different.

Finally, something funny (perhaps disturbing!) that I recently noticed was that the Sony Playstation 1 remains on the Stereophile Recommended Components List of 2018 as a "Class C" device! Now, having listened and measured a PS1 SCPH-5501 (said by some to be superior to the ancient Stereophile-reviewed SCPH-1001) a number of years back, I can say without reservation that this Sony SCD-CE775 blows away the PS1 in terms of sound quality. Subjectively, to me this device sounds more dynamic, has very neutral frequency response, and has excellent rendition of nuances (I had a listen to Radka Toneff & Steve Dobrogosz's Fairytales and thoroughly enjoyed it). Objectively in every way from smoother frequency response, to lower noise level, to significantly better jitter rejection this bests the PS1 of course! [Another reminder of the idiosyncratic subjective interest demonstrated in these "best of" lists that speak more of the writers than the devices or underlying sound quality itself...]

So... Based on sound quality alone, can I therefore suggest that this is at least a "Class B" device for CD and maybe even "Class A+" for SACD hi-res? As far as I am aware, these Sony SACD players operated fully in DSD without a PCM conversion stage unlike some inexpensive SACD players back in the day. Plus with the convenience of a remote control, 5-disk changer, multichannel capability, CD-TEXT display, this is one heck of a bargain if available in good condition at a good price on the used market!

--------------------------------------------
