MEASUREMENTS: Focusrite Forte USB Audio Interface (ADC & DAC) + Summer Musings

Product shot from here.

A few weeks back, I mentioned that I grabbed one of these Focusrite Forte USB2 audio interface units for some home recording projects I wanted to do. Beyond using it as a measurement device, my old Creative E-MU 0404USB was being used for some of these recordings and I figured it was time to upgrade to something new since a couple of the analogue pots were getting a little scratchy and I figured an all-digital device like this would allow me to more accurately adjust the volume on the microphone pre-amps (indeed it has worked out very well!).

A size comparison.

Another nice thing about this device as I mentioned before is that as an ADC, it can be completely powered off the USB port from the computer. This is fantastic as I wouldn't need to bring the included power supply for recording or to perform measurements so long as the laptop has enough juice...
Look ma, no wall socket needed... But notice the break-out cables for analogue input; both TSR balanced and XLR available.
Note that without the power supply plugged in, there is a -18dB attenuation from the audio outputs (both headphones and balanced out) so sensitive headphones would be recommended if one needs to listen to the playback off this device during an unplugged editing session... One could always plug the headphones into the computer audio output instead for non-critical listening. The other limitation without plugging in the power supply is the lack of +48V phantom power for microphones.

This device has been on the market for at least the last 3 years, and Focusrite has updated the firmware and drivers over time. Here is the official update/download page. And for those wanting to use the beta drivers, get them here. For my testing I have been using the last beta drivers - version 1.3b1 dated July 2015. No problems with Windows 10. In fact, noticeably more stable with 24/192 recording and samplerate switching compared to the old E-MU.

As I look ahead, I'm planning to transition my measurements from the old E-MU to this little ADC so I wanted to explore the performance of this device both as a DAC and ADC today.

I. Focusrite Forte as DAC

Starting with the DAC performance, let's get some measurements using the E-MU 0404USB as I have done for the last few years with the following set-up:

Surface 3 laptop --> 6' shielded USB --> Focusrite Forte --> balanced TRS to XLR adaptor --> 6' balanced XLR --> E-MU 0404USB --> 6' shielded USB --> Windows 8 laptop for measurement

To maximize the line-level output, the PSU was plugged into the Forte.

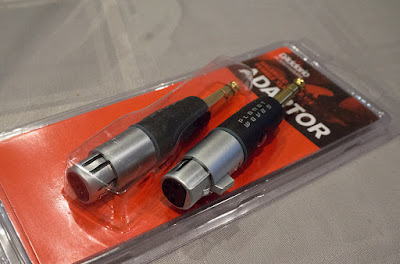

I tried to keep the balanced connection from the Forte to E-MU using a well-built 1/4" TRS-XLR adaptor:

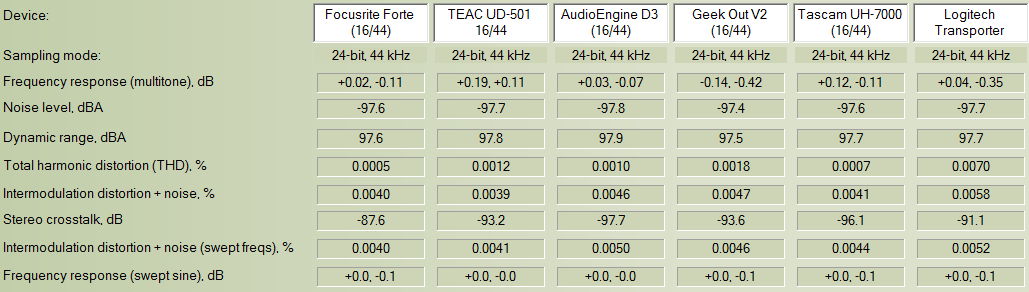

The mandatory CD-resolution test...

As I have demonstrated time and again. Standard resolution is really a piece of cake with any decent DAC these days! Flat frequency response, essentially ideal dynamic range and concomitant low noise level, extremely low distortion. Notice my Focusrite seems to have slightly higher crosstalk compared to the other devices. Not a deal breaker of course since less than -85dB crosstalk is more than anyone needs for music.

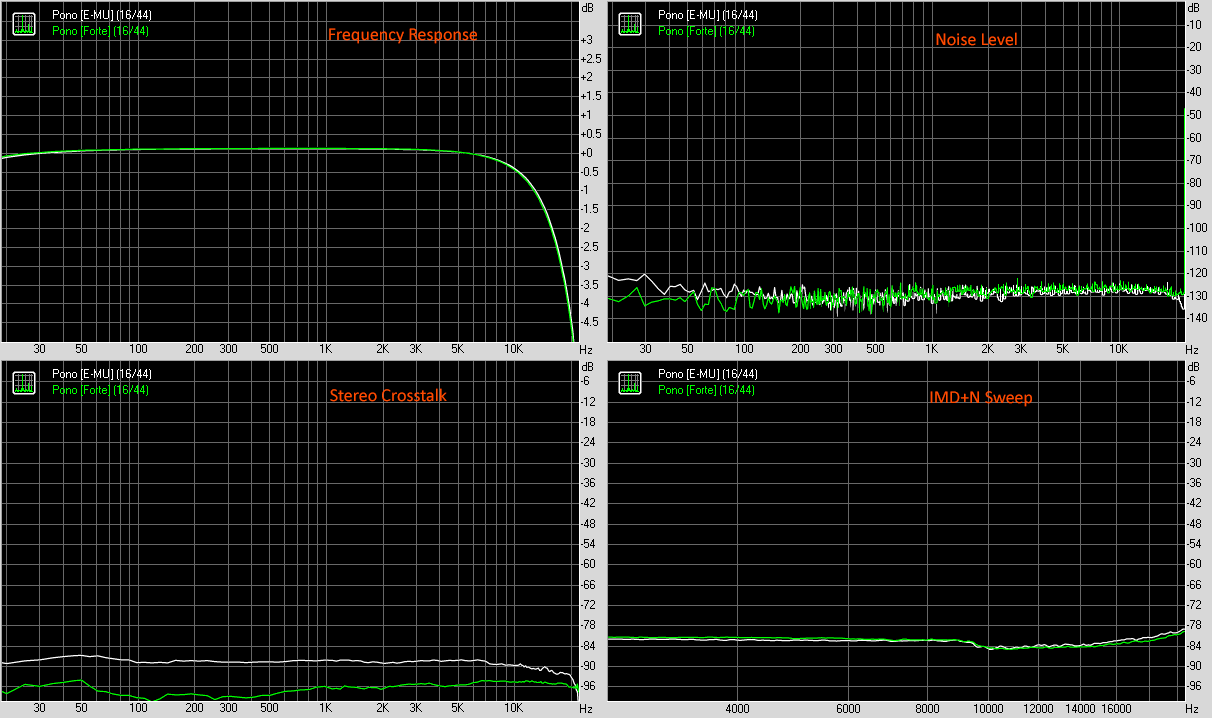

A few graphs:

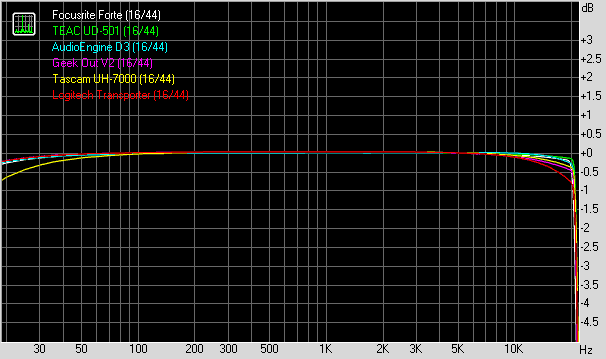

Frequency Response - essentially flat for all devices.

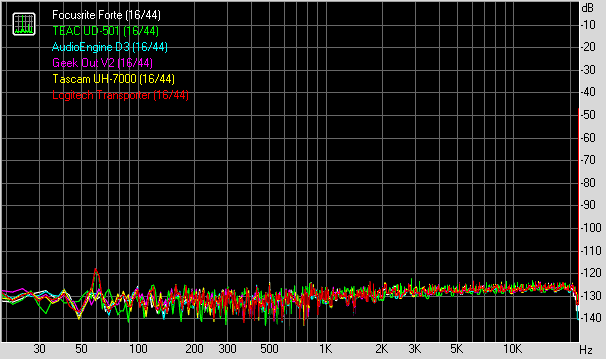

Noise level - 16-bit noise floor is easy to achieve these days...
IMD Sweep... No problems across the board.
Stereo Crosstalk. Though higher than others, Focusrite has a flat profile. The Tascam UH-7000 measured quite different from the others!
Let's go high-resolution.

Comparing the same devices as above, the Focusrite Forte remains very reasonable. Dynamic range around 111dB measured or ~18.5-bits of resolution, about the limits of the E-MU ADC. Although the distortion values are minimal for each device on the chart, it's really really low for the Focusrite Forte - impressive.

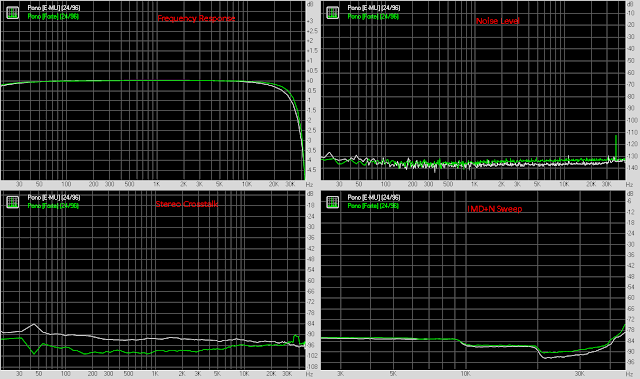

Again, a few graphs:
Frequency Response

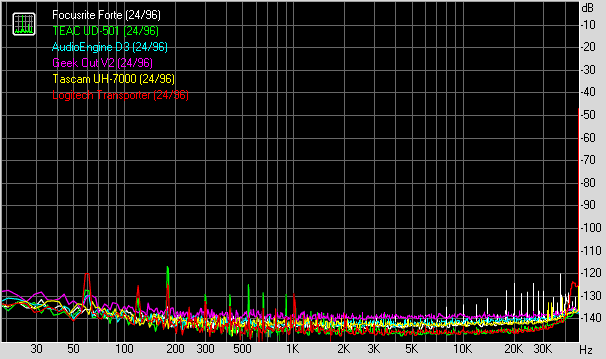

Noise Level

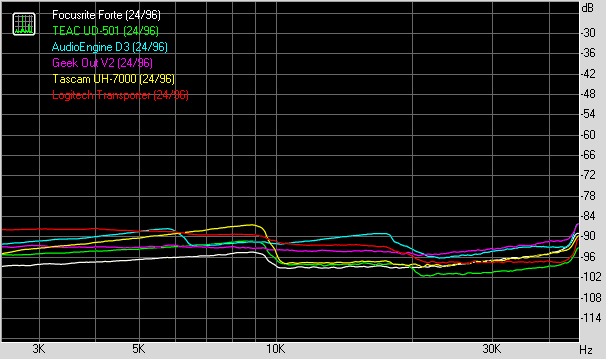

IMD Sweep - notice the very low distortion with the Focusrite.
Stereo Crosstalk - no surprise, about the same as 16/44.

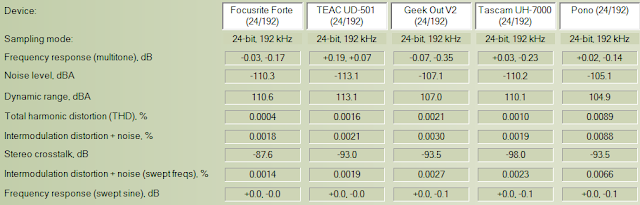

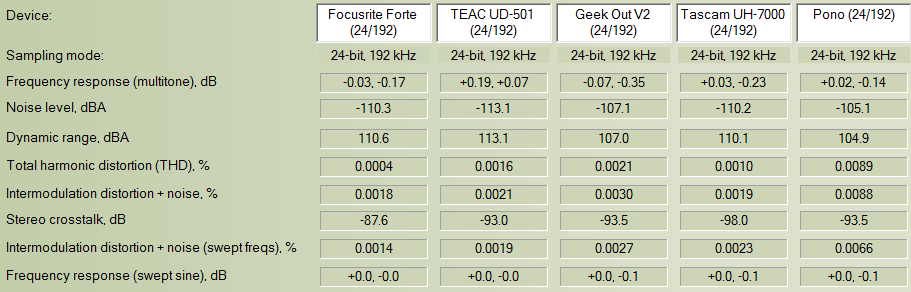

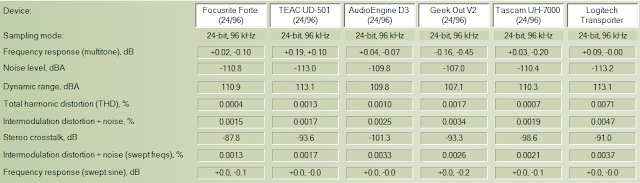

Finally, at the maximum bitdepth/samplerate this device is capable of...

The AudioEngine D3 and Logitech Transporter are not capable of more than 96kHz, so I included the results of the PonoPlayer here. Again, we see slightly better than 18-bit dynamic range. Crosstalk is a little higher, distortion level remains excellent with the Forte.

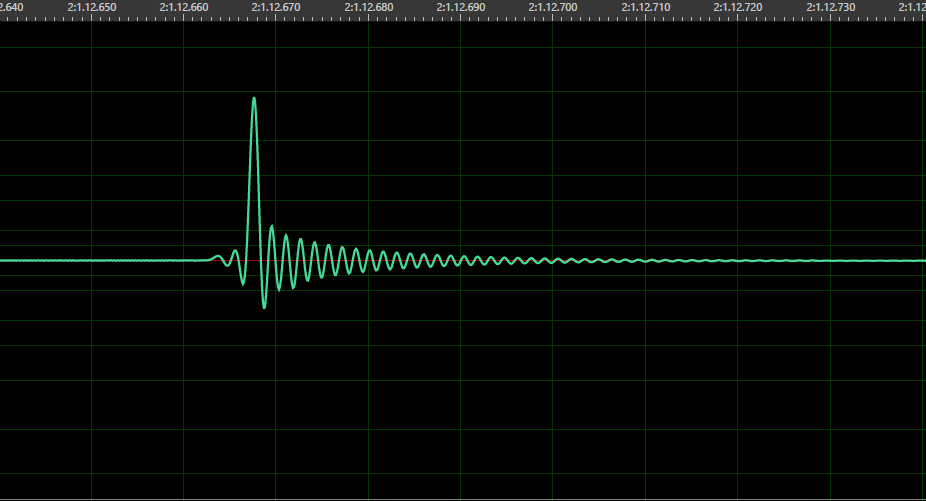

Check out the impulse response chosen by Focusrite for the DAC:

An intermediate phase setting, not commonly seen in devices tested. A tiny amount of pre-ringing with more energy shifted to the post-ringing. It's interesting to know the filter characteristic but as I said previously, not exactly something I worry about these days. Of course, when we see impulse response ringing like this, we'd expect a sharp antialiasing filter... Here's the "Digital Filter Composite" (a modification of Juergen Reis' suggestions used in Stereophile):
Sharp antialiasing cut-off. Minimum intermodulation distortion. Essentially "textbook" digital filter frequency domain performance.

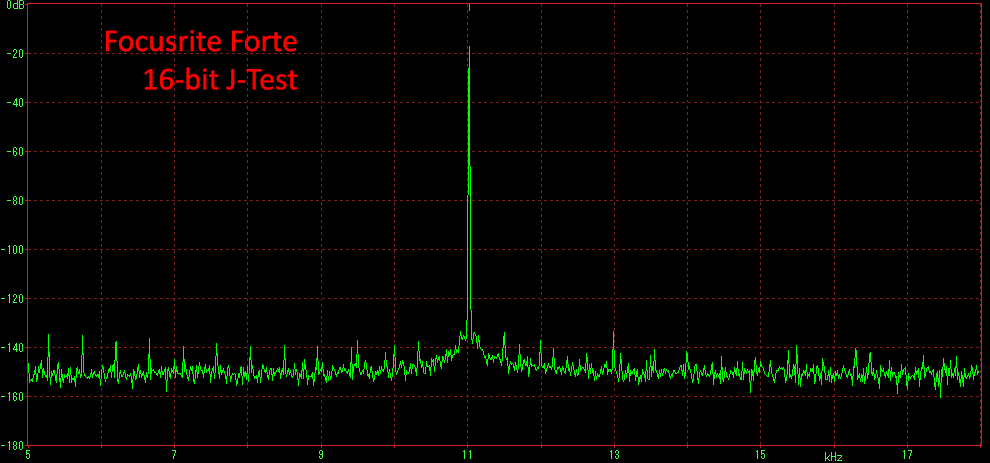

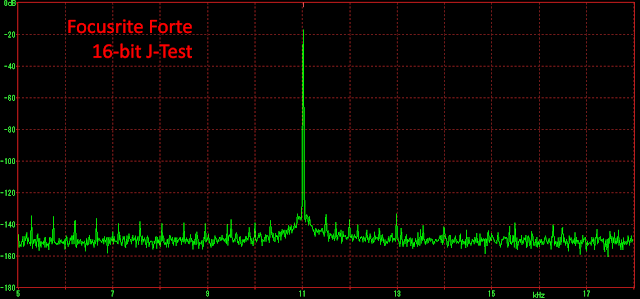

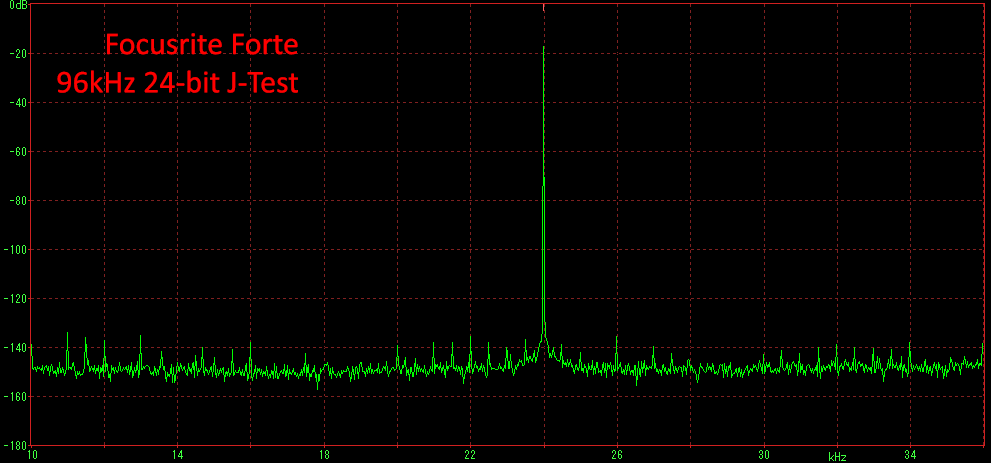

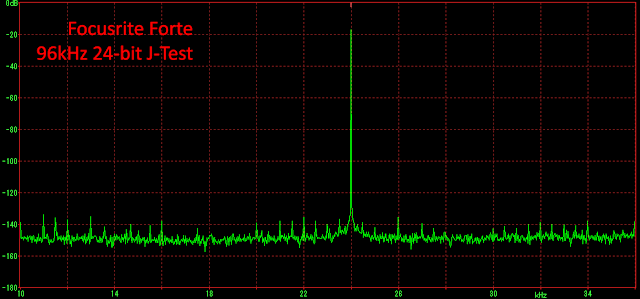

For completeness, here are the J-Test results looking for jitter:

Basically, no evidence of audible jitter as one would expect with a modern asynchronous USB device. The "extreme" 96kHz 24-bit J-Test also looks quite good; not as clean as the TEAC UD-501 as you can see in my previous post on the Chromecast Audio where I first posted some results.

II. Focusrite Forte as ADC

Okay, with an anticipated shift to another measurement ADC, it's expected that the results will not be directly comparable with those obtained using the E-MU 0404USB. Remember, just like different DACs have different ways of filtering, or implement different oversampling characteristics, so too do ADCs differ. Furthermore, there are differences in input impedance; the E-MU 0404USB's line-level input is rated as 1M-ohm, and the Focusrite Forte is rated at 44kohm. This should not be a problem for the Forte as typically line-level outputs have impedance of <1kohm.

For an interesting overview of ADC functioning, see this post on "How Analog-to-Digital Converter (ADC) Works".

I haven't found any specs on what ADC chip is used in the Focusrite Forte. The company does provide an otherwise detailed spec sheet here.

First, let's have a look at the noise floor for the Forte:

Using WaveSpectra set at the maximum FFT of 128k sample points in realtime, and zooming into the 20-300Hz range, we see that running the Forte on laptop battery reduced the 60Hz AC hum (neither the laptop nor the Forte plugged into the wall socket). That looks great. In fact, unless otherwise specified, I will be running measurements like this without either the laptop or Forte plugged into the wall.

How do the RightMark results look using the same player/DAC measured off the E-MU versus Focusrite Forte? [RightMark calibration signal set as closely as possible to -1dB through ADC inputs.]


These measurements were done with the same analogue cable; a phono to RCA connector from the line-level output of the PonoPlayer. Inputs on both ADC's used a balanced-TSR to single-ended-RCA adaptor.

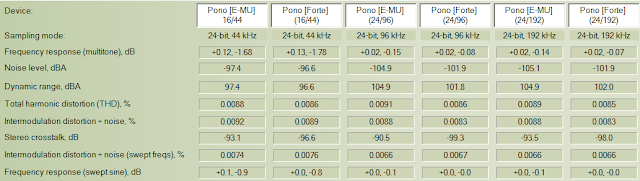

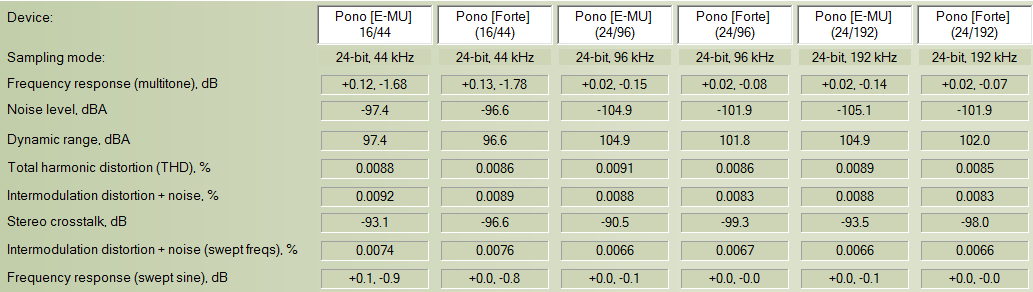

As you can see, when measurements are compressed into just a single number, we can see some variation in noise and dynamic range characteristics (the Forte tending to measure 2-3dB lower for the 24-bit tests), and quite a bit of crosstalk difference with the Forte posting up significantly less crosstalk suggesting the "RedNet"-like pre-amps by Focusrite are superior to the Creative E-MU.

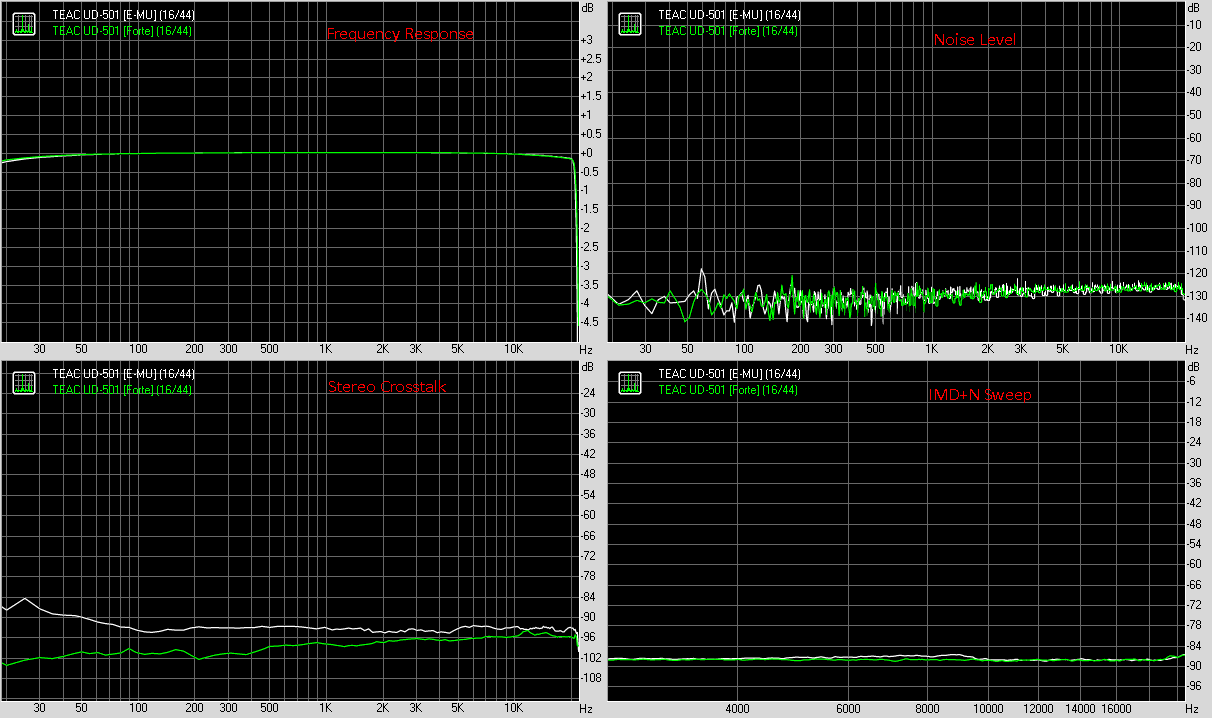

16/44.1kHz graphs. Notice the high frequency drop-off due to the Ayre filter.
24/96kHz graphs.

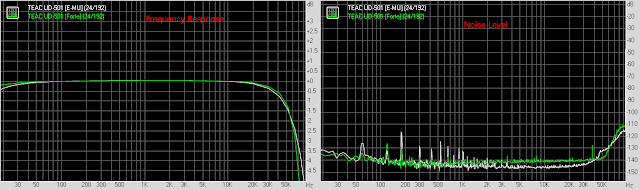

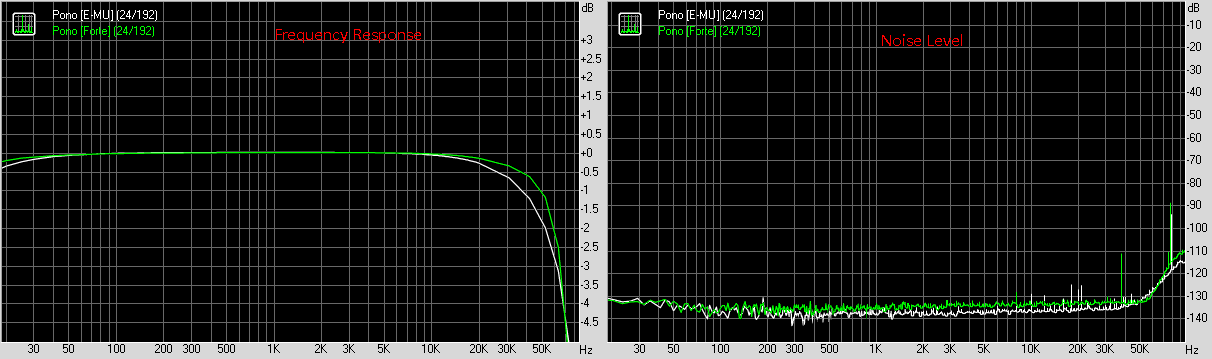

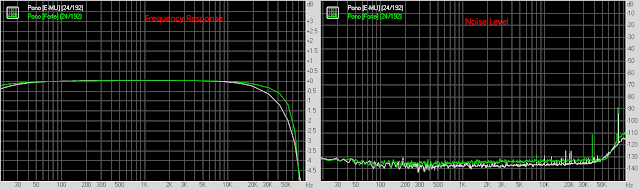

24/192kHz graphs - only showing frequency response & noise level as RightMark seems to have a bug when displaying crosstalk and IMD+N sweep results at 192kHz.

TEAC UD-501:
What do the results look like with a good desktop DAC?

As expected, the TEAC UD-501 is capable of higher dynamic range and a lower noise floor compared to the PonoPlayer at 24-bits. Again, we see the E-MU numbers look slightly better for noise floor and dynamic range. The spread is about 3dB with 24-bit signals. Also, we see that stereo crosstalk measurements are much better with the Forte which I again suspect is related to better pre-amp input circuitry.

Notice again how close the distortion results compare between the two ADCs.

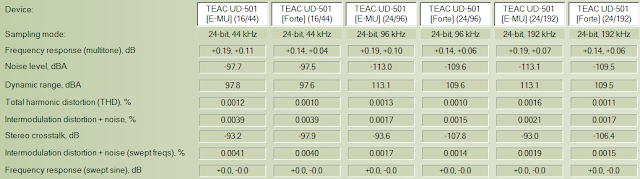

Here are the respective graphs at 16/44, 24/96, and 24/192:

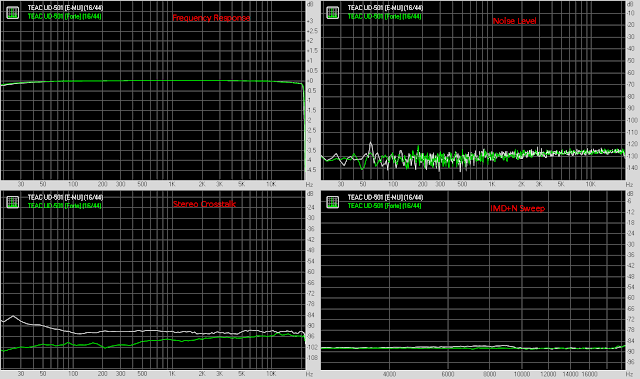

16/44 graphs. Notice the sharp filter with frequency extension all the way to Nyquist unlike with the PonoPlayer.
24/96 graphs.

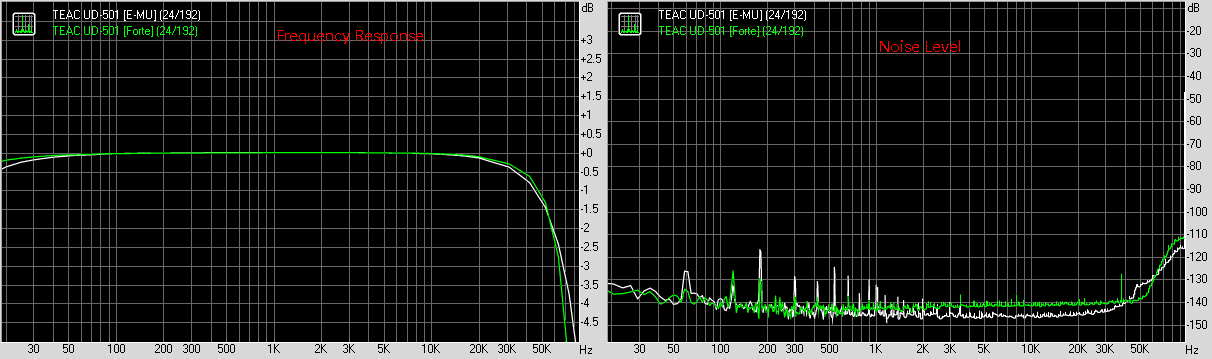

24/192 graphs.
If you look at the 24/96 and 24/192 "Noise Level" graphs, it's evident why the Forte's measurements tend to show a lower dynamic range. Although the Forte has a cleaner noise floor (less polluted by occasional noise spikes especially below 2kHz), from about 1kHz up, the Forte's absolute noise level is actually a little higher than the E-MU. It is this difference averaged over the full audible spectrum that gives the E-MU measurements approximately +3dB resolution.

As such, measurements with the Focusrite Forte will max out at about a dynamic range of 110dB (18.3-bits) compared to the E-MU 0404USB around 113dB (18.8-bits) using the RightMark methodology. This is important to keep in mind going forward to make sure the same ADC was used for measurement comparisons.

We can have a look at the full WaveSpectra noise floor sampled at 192kHz (0dB pre-amp gain) to see the cleanliness compared to the E-MU:

(Interestingly, there is a single noise spike with the Forte at around 37kHz, way outside audible range. Apart from this it's very clean. Certainly much cleaner than the issue with noise using the Tascam UH-7000 more than a year back.)

In any event, despite the differences between results from the E-MU vs. Forte, I trust that if one were to look at the frequency response plots, gestalt of the noise level, and similarities of the distortion characteristics, one would conclude that these are measurements of the same (or at least very similar) DAC and that the sound would be very similar if not identical.

III. Conclusions

After putting the Focusrite Forte through its paces over the last month or so with a few test measurements, running it with a few different computers, and listening through the headphone jack as well as analogue line-level outputs, I must say, I like this little device. It feels well made and my "copy" here seems quite sturdy despite complaints that the control knob has fallen off for some folks. We will see over time!

Subjectively the sound, when plugged into the PSU is full-bodied and can easily drive both my Sennheiser HD800 and AKG Q701 headphones; don't even try running power hungry headphones without the AC adaptor. It sounds clean and well extended, with controlled bass. I'd certainly be happy if it were simply used as a DAC for audio workstation demands (in fact, there is a DAW control mode where you can utilize the knob and click function).

What I really like though is the small form factor and the ability to record with just the USB port power. That's fantastic convenience in my opinion. The user interface works well enough - the OLED screen could be a little larger and touch control a little more sensitive though. Digital control of pre-amp gain/cut is precise down to 0.5dB steps. For measurement purposes, the linearity is heads and shoulders better than using analogue pots on the E-MU which can take a bit of fiddling to get the right level setting when calibrating for a measurement. Another benefit is that the pre-amp is capable of a wider gain/pad range than the E-MU which comes in useful especially for higher level "hot" signals. Although I don't love the break-out cables, for the small footprint, it's acceptable.

Objectively, the DAC output measures well in my tests although the stereo crosstalk wasn't as low as it could be. Note though that this is one measurement prone to variation depending on the analogue cable used. In any event >85dB separation is fantastic and it's not like anyone would be able to tell the difference between -85dB vs. -95dB crosstalk; nor would this be needed for any actual music! (Remember the oft quoted crosstalk figure for LP phono cartridges is ~30dB.) As a DAC, it is clearly capable of high resolution playback and can benefit from 24-bit audio.

As for the ADC function, I really like how clean the noise floor is! Sure, the noise level is a little higher than the E-MU through parts of the audible spectrum, but I trust that a 3dB difference at -110dB isn't going to upset anyone :-). As you can see, comparative measurements of the same DACs with the Forte vs. E-MU results in good correlation between the devices.

Needless to say, given the convenience, I am intending to use the Focusrite Forte as my main measurement ADC for future posts as well as of course using it with my home recording projects and the occasional vinyl rip...
