MEASUREMENTS: Oppo UDP-205 Part 1: Output levels and digital filter settings... (And a few words about recent Munich 2018 MQA interview videos, McGill listening test out.)

Well guys, with this post, I'll begin a multipart look at the Oppo UDP-205 4K Blu-Ray player as an audio component "more objectively". Clearly, as I presented in the preview a couple weeks back, the UDP-205 is very much a device created to appeal not only to videophiles but audiophiles. Why else would Oppo go the extra mile and use dual "reference" ESS ES9038Pro Sabre DACs, provide 2-channel asynchronous USB 2.0 input, both multichannel and stereo analogue outputs plus balanced XLR? It even provides a secondary HDMI 1.4 "audio" output for lower jitter to an external DAC compared to the higher spec HDMI 2.0 which is of course a necessity for 4K/60fps/HDR video; something that I have not seen before. IMO, for home video purposes as a 4K player, the UDP-203 would in fact be very much sufficient - the upgrades found on the UDP-205 are primarily for those who want elevated audio performance. We'll look at whether this is true through these objective measurements.

For the post today, let's start with a few of the "microscopic" measurements that I typically put devices through. The reason I'm breaking measurements into multiple parts is because there are so many ways you could use this device! You could spin disks and make this a CD/DVD-A/SACD/BluRay-Audio player. Hook it up to a streamer/computer through the USB 2.0 interface. Use HDMI input for multichannel audio decoding. Of course it could be used as a S/PDIF DAC with TosLink or coaxial inputs. How about use it as a DLNA/UPnP streamer (works fine with JRiver, even 5.1 multichannel FLAC)? We'll look at bits and pieces in the performance of this device over the next while, concluding in a general assessment of quality and shortcomings once all is said and done...

Preamble:

Before getting started, it's important to mention that these measurements are all done with the latest firmware available when the measurements were gathered in May 2018. The latest downloads can be found here. The version currently is: UDP20X-56-0244, with loader TF0035, and MCU205-01-1220 released in March 2018.

As usual, with firmware updates there could be changes to measurements and features added over time (hopefully for the better!).

I. Oscilloscope (1kHz 0dBFS square wave, 24/44.1)


Looking at the UDP-205, we see that there are actually 4 separate sets of analogue outputs we can connect a measurement device to. These are:
1. Stereo RCA
2. Stereo XLR
3. Multichannel RCA
4. Front headphone 1/4" phono jack
So, let's have a look at my usual 1kHz 0dBFS square wave at 24/44.1 from each of these outputs. First, here's what the default output from the rear stereo RCA jacks look like:


As you can see, by default, Oppo uses a minimum phase "fast" (steep) response filter with expected post-ringing. As I had previously discussed, I have no fear of "ringing" since it's not present with well produced music and much prefer a more linear filter which does not induce phase shifts especially affecting the high frequencies. So, I changed it to "Linear Phase Fast" setting instead (we'll talk much more about this below):

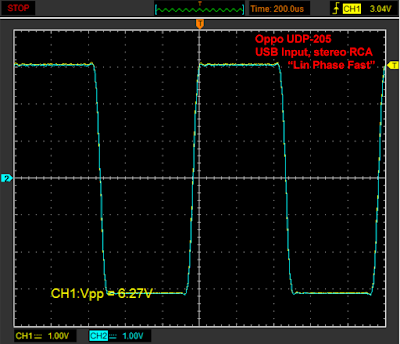

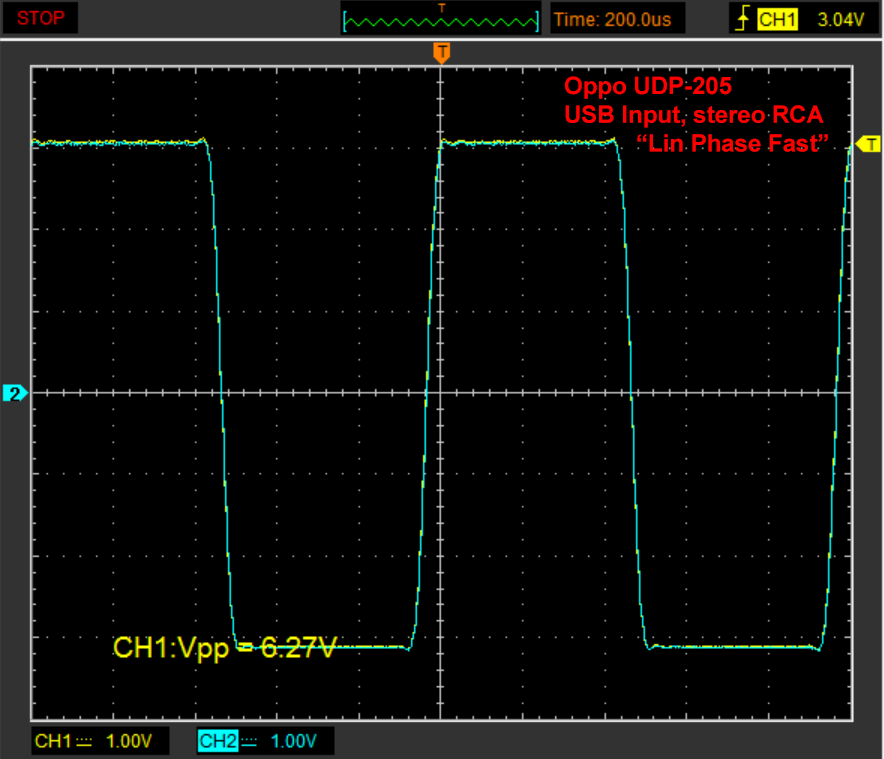

Yeah, that's more like it for an accurate square wave. Looks pretty good. The two channels overlay nicely on each other which is of course what you want to see with precise channel balance. Notice the general absence of pre- or post-ringing. Peak voltage is at 3V or 2.1Vrms for a sine wave.

Let's look at the other outputs briefly:

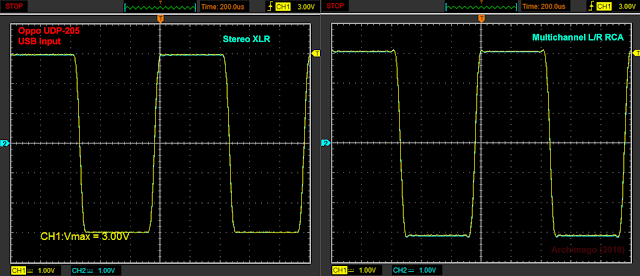

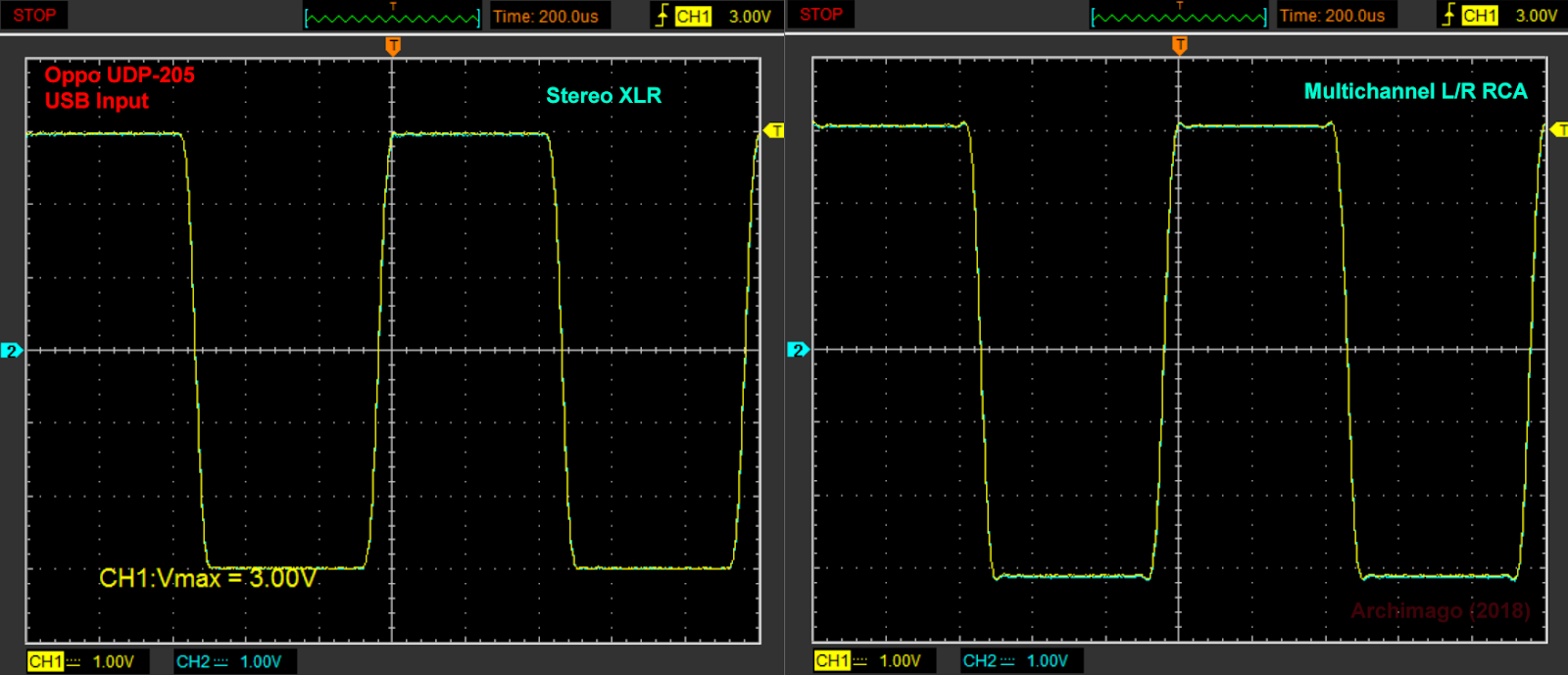

On the left are the XLR channels plugged into a XLR --> RCA converter. This won't demonstrate the quality of the signal (we'll directly measure the XLR output resolution next time with RightMark measurements), for now it does demonstrate again the excellent channel balance. On the right is the same signal from the front L/R channels of the 7.1 RCA jacks. Line level and XLR outputs look great overall.

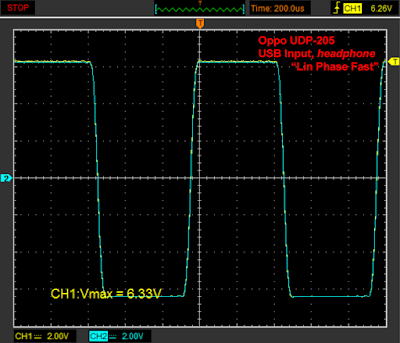

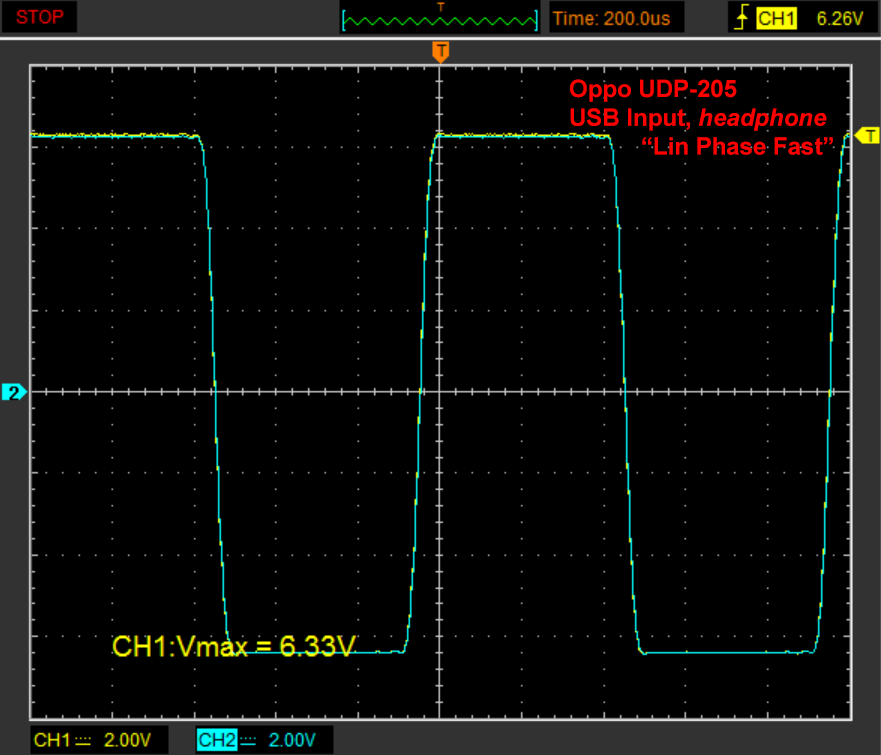

And last but not least, there's the headphone output with a peak voltage 6.25V or 4.4Vrms. The manual lists the maximum output power as 590mW into 32-ohms nominal, and <0.1-ohms output impedance. My own measurements do show <1-ohm output impedance across a 20-ohm load using a 1kHz signal. This headphone amp should sound great with both low and high impedance headphones (although it'd be a shame to use low impedance inexpensive earbuds meant for mobile applications on this!). Sounds lovely with my AKG Q701 and Sennheiser HD800; plenty of power, very detailed with good bass level and clean definition.

II. Digital Filter Options


Folks, there are 7 digital filter settings on this machine. They are named:
1. Brick Wall
2. Corrected Minimum Phase Fast
3. Apodizing Fast
4. Minimum Phase Slow
5. Minimum Phase Fast
6. Linear Phase Slow
7. Linear Phase Fast
Most of them are relatively self-explanatory. I know filters are a tough part of the reviewing process. As I'm sure you've already seen with most purely-subjective reviews, the reviewer will vaguely talking about trying the filter options here and there, then just settle on one with claims that there's more "air", "better sound stage" or some other equally vague rationale. But to truly understand what filters do and the effects, let's have a look at both the frequency domain ("Digital Filter Composite" graph based on the idea by Juergen Reis) as well as the impulse response to give us an idea of the temporal dimension.

Just to break up the filter options and get away from one massive diagram, let's look at the first 3 filters together, then the last 4 can be grouped as the descriptions are already quite self-explanatory.

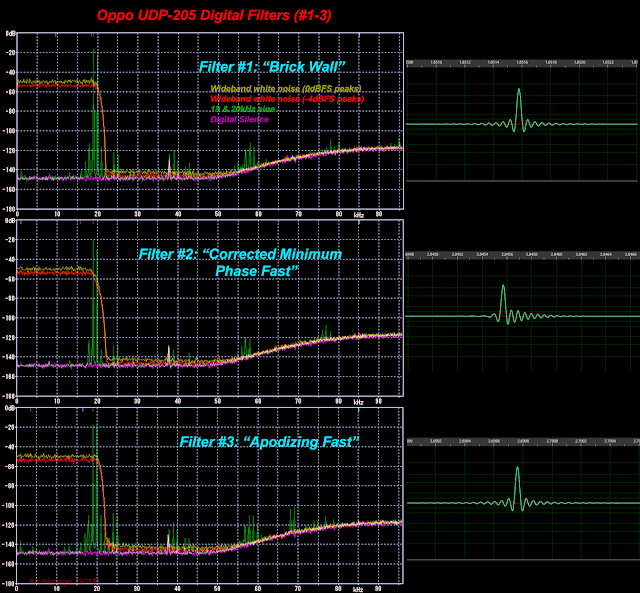

Here are Filters #1 to #3:


Notice that both filters 1 & 3 are very similar. Both have a steep decline around Nyquist with the "Brick Wall" having a bit better imaging suppression. It would be hard to argue that the difference would be at all audible! The "Corrected Minimum Phase Fast" filter is interesting. It's a type of intermediate phase setting with a smaller amount of pre-ringing, while maintaining a steep roll-off with good suppression of ultrasonic artifacts. Looking at the 19 and 20kHz peaks, notice that the 20kHz peak is notably lower than 19kHz indicating that the frequency response will start rolling off before 20kHz compared to #1 and #3.

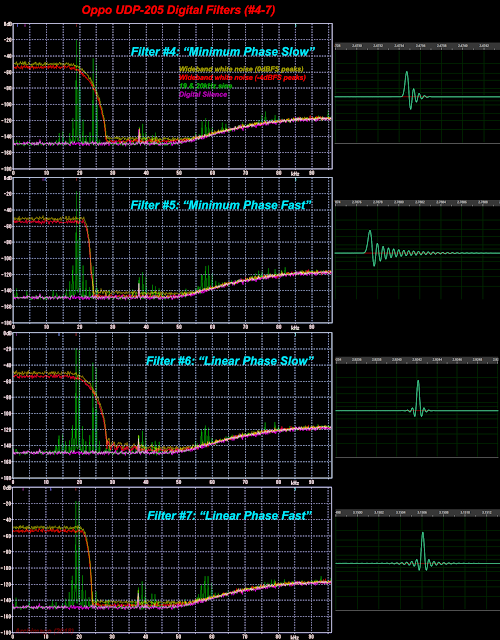

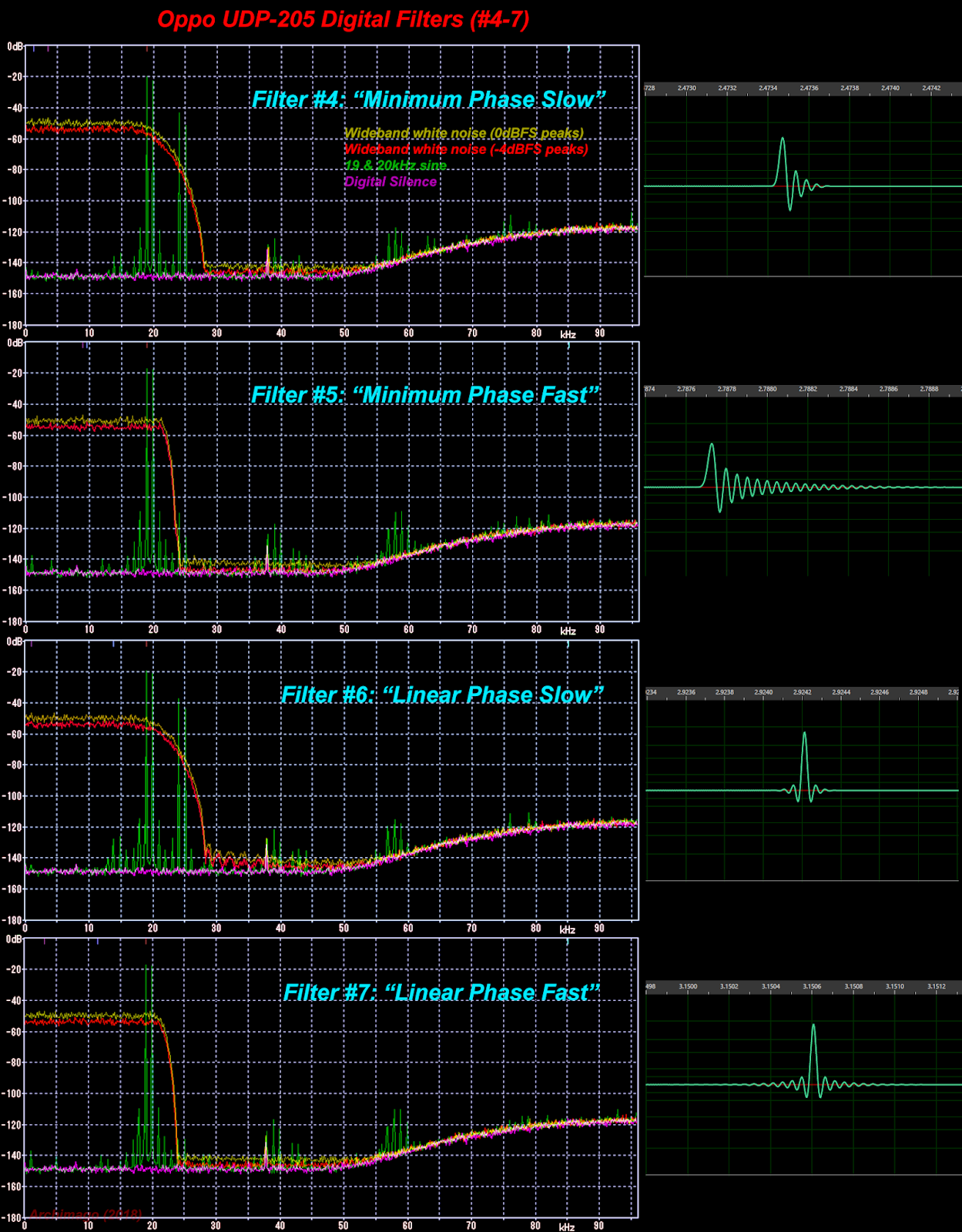

And here are the last 4 filters, aptly named:


Yup, rather straight forward. The "slow" filters are relaxed and allow ultrasonic imaging to seep through as you can see with the 19 & 20kHz signal (and the 24 & 25kHz "image"). I'm quite happy with the standard "Linear Phase Fast" setting as it does a great job with the filtering and handles intersample overloads well.

Each of the impulse responses have maintained absolute phase. Interestingly, notice that none of them are showing any significant overloading with the wideband white noise signals! This is in fact one of the few times I have seen a device where every one of the filter options appear to have enough overhead to not show intersample overload with my "DFC" plots using the 0dBFS-peak wideband white noise. (The only other device was the Light Harmonic Geek Out V2 a number of years back.) Impressive attention to detail and high level of engineering, Oppo. A significant improvement over the Sonica DAC last year where I initially complained about the digital filter setting and Oppo quickly released a new firmware to remedy the situation.

As you can see, this is also why I stated in the Oppo UDP-205 preview that if MQA were to be incorporated into this device's USB-B input, it would be wise to make sure that MQA filters only are active when intended rather than spill over into standard "unauthenticated" PCM data. This should be the situation with other devices as well but we have already seen cases where MQA filters stay active long after their intent (like the Mytek Brooklyn DAC+). Compared to the filter options above, MQA filters allow much more imaging to seep through (as per the measurements from the Dragonfly Black using these filters to "render") plus they demonstrate strong intersample overloading with high amplitude signals, creating extra clipping distortion which could be a problem with modern, highly-compressed audio if the peaks aren't attenuated by a few dBs.

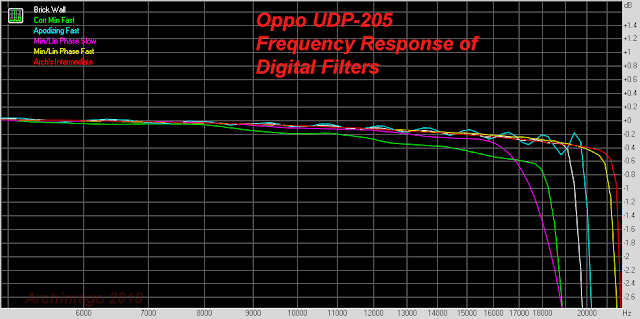

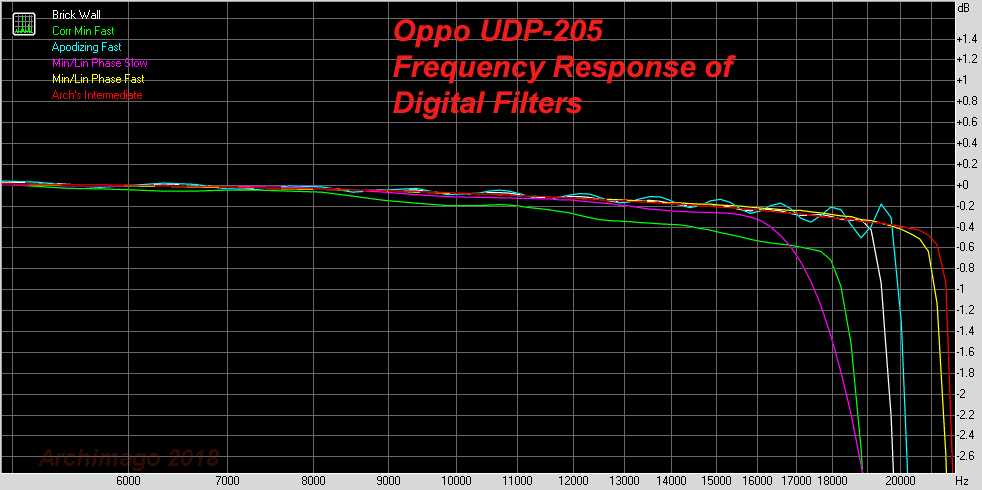

One last graph to show is the difference in frequency response between the filters using a 24/44.1 signal (remember folks, it's the lower sample rates like 44.1kHz where differences in filtering is most noticeable):

Note that the "Minimum Phase" and "Linear Phase" filters have the same general "Fast" and "Slow" frequency responses.
The graph above is zoomed in since below 6kHz, frequency response is simply flat. As you can see, Filter #2 "Corrected Minimum Phase Fast" has the earliest roll-off starting to deviate from the others by 8kHz. It's probably the most "unique" setting of the 7. I'm not sure what is "corrected" in this filter but that earlier roll-off might be good for overly bright sound systems and the intermediate phase setting will lower pre-ringing in poorly produced pop/rock albums with strong compression and signal clipping. Perhaps that's what Oppo is getting at with this filter option. [No explanation in the UDP-205 manual.]

The other oddity is the "Apodizing Fast" filter with its rippled-looking frequency response. Again, really subtle, objectively demonstrable and I doubt any human ear would be able to hear this.

For fun, I used my SoX intermediate phase settings, upsampling the signal to 24/705.6kHz ("Arch's Intermediate" as discussed in my previous post). As you can see, this results in the flattest frequency response out to 21kHz. If you like the high tap-length filtering used with Chord DACs, then you'll probably like this. Yeah, upsampling to 705.6kHz with a Raspberry Pi 3 "Touch" streamer is more than a little extreme... The little Pi 3 does the job without complaint and "extreme" is what audiophiles do. :-)

The obvious question you must be asking: can I hear a difference based on the filter settings? The answer is "no", I personally cannot, not with these settings and not with standard music! That is not to say filtering is never audible - it's noticeable with the PonoPlayer / Ayre filter for example. Remember that years ago, we did a blind test looking at minimum phase vs. linear phase, and even with that the results did not show group audibility preferences. This makes sense since recent discussions demonstrated that "ringing" is not an issue in well produced music and generally phase anomalies introduced by minimum phase filtering isn't all that audible either even though I think it's not technically "ideal".

What I can say is that high quality filtering can give me excellent objective results even if I can't hear it and that my intermediate phase filter setting using SoX in piCorePlayer running on an inexpensive Raspberry Pi 3 (these days, check out the faster Pi 3 B+ model with even more speedy ethernet) gives me extended frequency response and even slightly lower harmonic and intermodulation distortions (I did say today we are looking at "microscopic" measurements, right?!). Check out these 24/44.1 RightMark quantitative results with the different filters:


Notice the slightly higher noise level with "Arch's Intermediate" as I attenuated the signal by 4dB before filtering to prevent overloading of the 0dBFS wideband white noise.

This chart is also a preview of forthcoming measurements - notice that I'm measuring down to almost 20-bits of resolution. This is the best I've seen and the limit of my humble Focusrite Forte ADC.

We'll continue looking into the objective performance of the UDP-205 next time as we delve further into RightMark results looking at the usual things like frequency response, distortion values, and noise levels through the different inputs, outputs, and various resolutions...
---------------------------------------

Oh look... Bob Stuart's Q&As have now gone beyond the printed word and into audio/video courtesy of Darko Audio. John Darko I think did a good job with the questions posed which include a range of talking points.

From my perspective, despite ample opportunities given, Stuart doesn't scratch the surface into what MQA actually does nor provides clear indication of beneficial effects beyond the usual vague claims. As expressed in my Computer Audiophile review a couple months back, there are a number of technical concerns about the value of MQA's digital processing and questions around the non-sound-quality aspects of this technique (what does "authenticated" mean and DRM elements).

It's getting harder to watch Mr. Stuart explaining these things without actually getting into the technical details after all these years. In my opinion, the answers sound emotionally and intellectually hollow and apologetic rather than an inventor talking passionately about this so-called "revolutionary" product he has made or why it's actually exciting. In a technological age where many consumers understand generally how things work even if not the exact mathematical details, unless interviews like this go into some concrete details, it comes across unconvincing (again, IMO of course).

In the Part 1 video (6:30), he says "you take a song and you feed the lossless file into a DAC and then play it and you play it again and get a different answer... because the arithmetic part and the analogue parts of a DAC do something different every time you play it." How ridiculous does that sound? Surely Mr. Darko must be scratching his head at this answer! I can understand the analogue portion not being exact with each playback, but does the arithmetic portion of a digital filter throw out different results internally? According to Stuart, this is why "pure losslessness" doesn't exit. Yes, on a very microscopic level, each DAC playback would be slightly different depending on physical factors like the exact temperature of one's gear affecting noise, maybe microscopic power fluctuations, interference from nearby devices, slight timing variation from the clock, etc... But it's not this minutia that we're talking about with MQA, right? Losslessness has a clear definition as in "exact", errorless data storage, transmission and recovery. The only reason he gets bugged about the fact that MQA is lossy is because he played loose with the definition in the first place by claiming MQA is "lossless" and that it was able to "exactly" present the sound of the studio.

Then there's the whole concept of MQA somehow able to make sure "the DAC's right" (7:30) and that MQA results in "lossless analogue-to-analogue which is the same thing as connecting a wire". Say what!? As enticing as this idea is (linking the "studio sound" to the eventual DAC output), this is meaningless unless he claims MQA can literally make the playback from a $100 Dragonfly Black and a >$70,000 dCS Vivaldi One Limited Edition (both MQA capable) sound the same or at least "more similar" in sound than without MQA! Show me the evidence that MQA has the capability of making the sound output from disparate devices sound more like the "ideal" studio sound as if "connecting a wire" directly. [I touched upon this concept last year with comparisons.]

It really boils down to what Stuart said at 8:25, doesn't it? "The fact that the A-to-D and D-to-A change the sound is the thing we're tackling". What if we disagree on this "fact"? What if modern ADC and DACs are actually "transparent"? Suppose even if the ADC/DAC are not totally transparent but might introduce only a very small change to the reproduction of the waveform, how much difference would we actually notice since consumers were never in the studio? And even if MQA could bring us objectively "closer" to the actual "studio sound" (no evidence at all of this!), would it even matter if in fact the subjective differences are trivial? Notice these days that Stuart isn't using the word "deblurring" as much? After all that's said and done, along with the skepticism not only from audiophile enthusiasts but also among the industry, shouldn't he spend a bit more time proving to everyone that their technique actually does some "deblurring"?

Part 2 of the video series is about why MQA is "about doing it right". The "inconvenient truth is that if you want to do it right, you have to have it right in the beginning, middle, and the end. Can't have it fixed at the end." (0:30). He's right, so what's MQA doing about "the end" - you know, the speakers and the room? Nothing of course, because they have no control over the most important components in the audio playback chain!!! And that is an even more "inconvenient truth" which Mr. Stuart cannot just ignore...

Seriously, that's all that needs to be said about MQA and these videos. The rest of it talks about money being charged, running a business, maintaining an ecosystem, more about lossy/lossless (~14:00, "no DAC is lossless", yeesh). Look man, nobody's saying a company or individual should not be making money on a good product! Just make sure it's actually a good product that provides value!

On yeah, not directly MQA related, one last interesting and funny comment was made at Part 2, 10:00 - "it all goes back to why samplerates exploded". Seriously man, audio bit rates and sample rates "exploded" because certain audiophiles and the magazines told people using sighted listening anecdotes that 24/192 sounded better than 24/48 or 24/96!!! That the bigger the number, the better the sound quality. That's the only reason it exploded with many albums being nothing more than just upsampling. As I've said before, I really do not see any benefit beyond 24/96 (even that is likely significantly more than needed - perhaps down to something like 18/50 is all any human can realistically argue for even with filter effects). Of course, 24/96 can be streamed through lossless compression these days without too much effort over typical broadband (3.5Mbps with 25% compression isn't too much to ask!).

I'll stop there. :-)

Very busy at work and heading off on a business trip to beautiful Montréal. Happy June. Chat later and hope you're all enjoying some wonderful music!

Addendum (2018-06-03):
Looks like the McGill listening test results for MQA came out as a poster at the recent AES meeting in Milan with expert listeners!

Guess what... As suspected by our blind listening test last year; "Data shows that listeners were not able to significantly discriminate between MQA encoded files and the unprocessed original due to several interaction effects."

Not sure what "interaction effects" are being spoken of. If anyone was at the AES or have access to the results, perhaps they can explain. But looks like the encoded files didn't sound any different. Like I said before, I think this is good in that MQA can be transparent (despite objective technical limitations of the lossy encoding compared to an original hi-res master), but this whole "deblurring" bit seems to convey no benefit to the sound as suspected.

Bottom line then is that here's more evidence for audiophiles that there's no reason to bother with MQA from a sound quality perspective. I guess the audiophile writers who heard remarkable things must have been wrong. Bob Stuart and MQA Ltd. remain unconvincing with hyped expectations. Let's move along shall we?!
