It's a shame because I think of the 3 receivers, subjectively this is probably the best sounding (no blind test done, just a suspicion), has the highest power rating (135W into 8Ω, 1kHz, 1%), THX Select2 Plus certified, can amplify 9 channels (9.2 decoding), and when new, was also the most expensive of the three. I'm sure at some point I'll find a use for this 41 pound monster - maybe if/when the old Denon breaks down :-).
I don't think anyone can fault the external build quality which also looks quite handsome. Onkyo did unfortunately have some electronics failure issues with this generation of receivers however and back around 2016, I sent this unit back to them for an HDMI board replacement (here's a thread on the issue a few years back).
For this post, I think it would be interesting to explore the sound quality of this device as a 2-channel amplifier (especially compared to the little Yeeco TI TPA3116 amp last week). It'll give us an idea of how well a good receiver could perform and give us a peek at a modern Class AB device sitting in the higher end of the consumer price ladder (Class AB receiver amplifier designs have not changed that much in the last number of years). These days a similar tier THX model with equivalent power would be the newer Onkyo TX-NR1030 and TX-RZ1100.
I. Basic Amplifier Characteristics
This AV receiver is run off a relatively thick 2-prong IEC cable to the mains. For the tests today, I'm going to use the "AUX" RCA input, measuring the front L and R amp outputs, and the amp will be turned to "Pure Audio" mode for presumably best performance with Audyssey MultEQ XT room correction DSP, EQ, bass management, and other features turned off.
Amplifier Gain was measured as 36dB with the volume knob up to "82.0" which the amplifier also identifies as the "Ref(erence)" level. I can push this up to "100" which results in a gain of 54dB!
Amplifier Damping into 4Ω looks quite stable through the audible band:
Notice however that the damping factor is not particularly high. Onkyo states that this device uses their WRAT (Wide Range Amplifier Technology with a range of 5Hz - 100kHz frequency response) amplifier and is stated to have a "3-Stage Inverted Darlington Circuitry" which is supposed to employ "low negative feedback". Perhaps the relatively low damping factor is a result of this? We can see in the online brochure that the damping factor given by Onkyo is 60 at 1kHz into 8Ω which is good but still not high compared to many solid state amps.
Here's the Frequency Response of the amplifier comparing the 4Ω load and the Sony SS-H1600 speaker:
Though the damping factor is not particularly high (ranging 11-16 across the frequencies into a 4Ω load), notice that this is fine for the Sony speaker which has a higher impedance, with only slight frequency fluctuation from an ideal flat response. The "gain spread" for the Sony speaker is less than 0.25dB through the audible spectrum.
We can have a look at the Phase Response as well, output to 4Ω load:
II. Single-Tone Harmonic Distortion and NoiseMoving along, with the DAC output set at 1Vrms, we can have a peek at a few 1kHz THD(+N) FFT's across a few power levels:
As you can see, I've selected 6 power levels to show the THD+N pattern. The amp is straining by 29V (~210W) into 4Ω with around -50dB THD+N. Notice that there's a small amount of 60Hz mains hum with hum harmonics in the lower frequencies adding to little "needles" in the noise floor.
The harmonic distortion other than at 16mW contains low second-order products and we see that it's the 3rd harmonic that predominates across the power levels and from 1W and beyond, the odd-order harmonics predominate. If you've read hi-fi magazines over the years, you've no doubt been aware of the tendency towards odd-order harmonics with solid-state devices and this has been said to be a factor as to why some prefer tube amplifiers (for example, here's KEF's comment on this recently posted in August of this year).
Harmonic Distortion vs. Frequency in the Stepped Sine graph - here are 1W and 100W power levels:
We can clearly see the odd-order predominance on the Stepped Sine graphs. For example, notice how high the 3/5/7/9th harmonics are compared to even the red 2nd harmonic in the 2Vrms graph.
Let's now see how much power this amplifier can produce. Here is the THD+N vs. Voltage curve:
For those not familiar, I've included THD+N in % and also Power Out in W as well. Clearly this is better than the little Yeeco amp from last week. We see that THD+N stays below 0.1% THD+N up to 28Vrms or 196W.
I've seen older measurements such as this one by Sound & Vision magazine from back in 2012. Using their AP test system they claim to have measured 0.1% THD+N into 4Ω at 218W. I didn't see anything as low as their reported 0.0035%/-89dB THD+N into 8Ω at 5W.
My simple Crosstalk procedure using 300Hz and 4kHz tone in either right or left channels resulted in an average of -69dB. That's certainly more than good enough. Up to 100W output, I was unable to detect a difference in THD+N whether both channels were driven vs. single channel. No surprise that for a 9-channel amplifier, there's plenty of power to drive 2 channels without showing any signs of stress.
III. Multitone Testing - Intermodulation Distortion and Triple-Tone TD+N
As you can see with a low 2Vrms output level, there are no 2kHz sidebands around the 12kHz tone to be found (all we see are low-level "needles" originating from the 60Hz mains hum and harmonics). By 14V output, we indeed see 2kHz spaced noise popping up but this isn't bad as we're looking at levels down below -110dB off the 1kHz square wave. Remember that this test comprises of a square wave that's swinging ~28V from positive to negative in <10μs with the sine wave riding along. Remember that for Class AB amplifiers, the 2V test could still be in pure Class A while by 14V, assuredly in Class AB with potential crossover distortion.
I suppose if I pushed it to 20Vrms, things could get uglier... I'm just not impressed that there's a need to strain the amp that much with such an artificial non-musical signal.
And finally, we have the Triple-Tone Total Distortion and Noise graph at the standard 2Vrms level into 4Ω:
Remember that I'll be using the measurement above (-73.1dB) for my Distortion Factor summary score due to the importance of the "First Watt" principle. Nonetheless, we can have a peek at other, higher output levels like this:
IV. Square Wave and Wideband Noise
That's a pretty nice square wave ("non-aliasing", 24/384 signal) indicative of good extended bandwidth - as per Onkyo's "WRAT" acronym. Notice the excellent channel balance as well with essentially perfect overlay of right and left channel waveforms.
Here's the wideband FFT all the way out to 1.5MHz to look for very high frequency noise:
Nothing much to see all the way out to 1.5MHz.
And for fun, here's what a low amplitude +/-150mV 1kHz square wave looks like:
We see the oscilloscope running at 1gigasample/s is picking up a little bit of spurious noise, but notice how clean this is compared to the inexpensive Yeeco Class D amp last week.
V. Impressions and ConclusionsSo let's wrap this up. With the Onkyo TX-NR1009 "WRAT" amplifier, we can see the performance level of a modern Class AB AV receiver. While this is not the latest generation with all the whiz-bang features of 2019 like HDMI 2.0 capability, the amplifier in this model is certainly highly capable and powerful, able of pushing a 28V (~200W) 1kHz sine wave through a 4Ω load achieving 0.1% THD+N distortion.

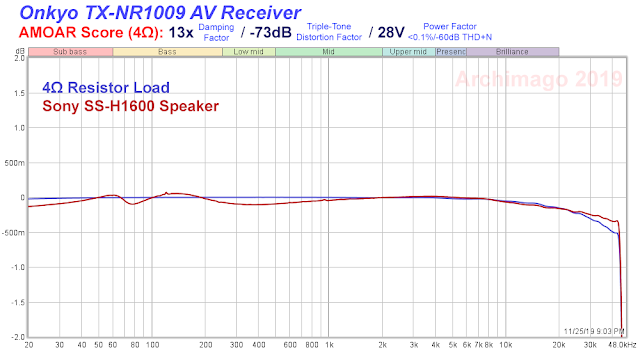

Here's the summary AMOAR Score:
With a Triple-Tone Distortion Factor, 2Vrms into 4Ω result of -73dB, that's indicative of a clean sounding amplifier. A finding worth noting is the relative predominance of odd-order harmonics as seen in Section II.
As I mentioned at the start of this article, I believe this Onkyo is the best sounding of my 3 receivers despite the low damping factor and I would have loved to see lower mains hum harmonics. Maybe at some point I'll have a look at my Yamaha "Natural Sound" receiver for comparison which I'm somewhat curious about as well.
